Adam Stainless, a prominent manufacturer and supplier located in Canberra, Australia, is known for its top-notch Stainless Steel 904L Sheets and Plates. These products are celebrated for their exceptional corrosion resistance and remarkable durability, crafted with precision to adhere to international quality standards. Adam Stainless takes pride in delivering sheets and plates that not only boast strength but also have an appealing aesthetic, making them perfect for demanding industrial and architectural uses. With a strong focus on excellence and customer satisfaction, Adam Stainless caters to a variety of sectors, offering customized solutions that enhance performance, longevity, and reliability, establishing themselves as a trusted choice throughout Australia.
The Stainless Steel 904L Sheets and Plates are primarily made of iron, featuring high amounts of chromium (19–23%), nickel (23–28%), and molybdenum (4–5%), along with small amounts of copper to boost corrosion resistance. This austenitic alloy showcases outstanding mechanical properties, including high tensile strength, excellent ductility, and resistance to pitting and crevice corrosion even in harsh conditions. With a low carbon content (≤0.02%), it offers superior weldability and formability while maintaining toughness at elevated temperatures, making it perfect for applications that demand both strength and long-lasting reliability.
| Standard | ASTM A240, ASME SA240 |
| Thickness | 0.1mm to 12 mm Thk |
| Sheet and Plate Size | 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sandblast, Brush, etching. |
| Finish | Hot rolled (HR), Cold rolled (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated). |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
| SS 904L | 0.020 max | 2 max | 1 max | 0.040 max | 0.030 max | 19 – 23 | 4 – 5 | 23 – 28 | 1 – 2 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.95 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35 % |
Contact us to get a quick quote for your requirement.

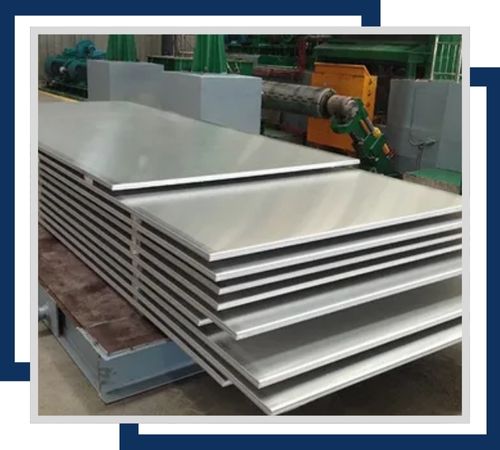

Stainless Steel 904L hot rolled sheets exhibit excellent corrosion resistance in aggressive conditions, such as acids and chlorides. Thicknesses range between 3mm to 25mm, while widths can be up to 2 meters in size. This sheet is employed in heavy-duty applications where robust structural integrity is demanded.

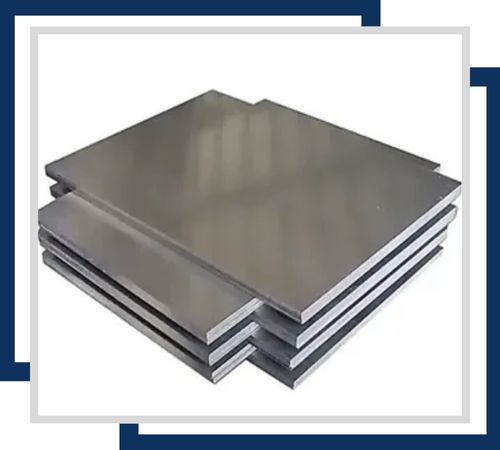

Stainless Steel 904L Cold Rolled Plates are alloyed with austenitic with excellent corrosion protection against strong acids and chlorides. These 904L sheets are available up to 0.5-3 mm, with widths ranging up to 1.5 meters. Plates are also featured with a highly smooth surface polish that can use for precise aesthetics.

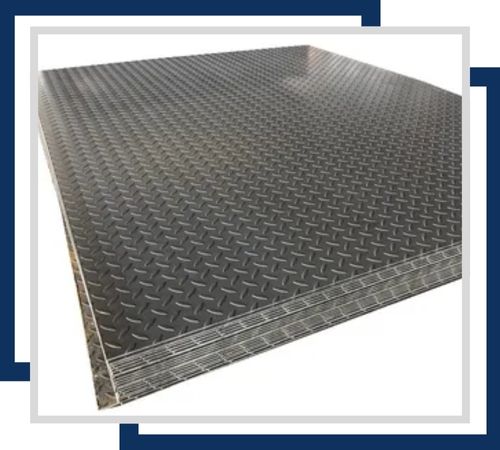

Stainless Steel 904L Chequered Sheets have a patterned surface that enhances slip resistance while maintaining excellent corrosion resistance. Available in common thicknesses of 2 mm to 6 mm and up to 1.2 meters in width, these sheets are ideal for flooring and other high-traction surfaces.

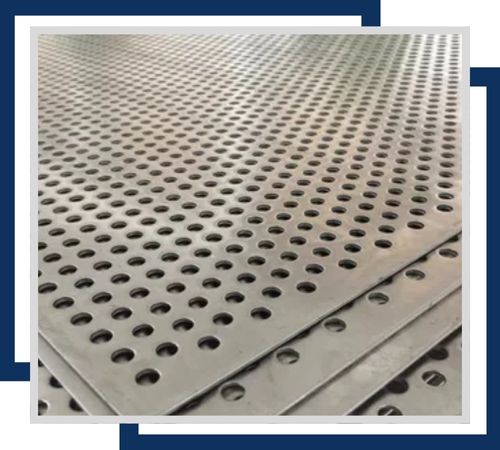

Stainless steel perforated plates from the 904L grade combine corrosion resistance with customized perforation patterns for ventilation and filtration. Thicknesses range from 1 mm to 8 mm, and the size up to 1.2 meters by 2.4 meters accommodates industrial and architectural applications.

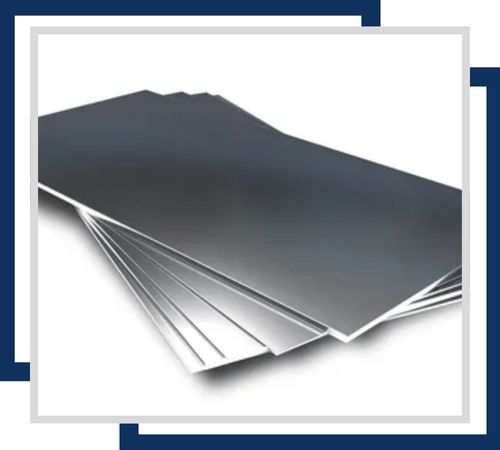

Stainless Steel 904L Shim Sheets are excellent resistance to aggressive environments and precise thicknesses for the application. Normally available in a thickness range from 0.1 mm up to 3 mm and size up to 1 meter by 2 meters, these sheets are used for gap filling and alignment.

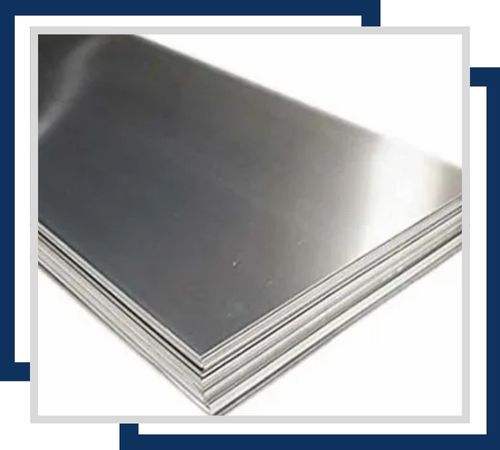

Stainless Steel 904L Polished Plates are known for their excellent finish and high corrosion resistance. They are very suitable for decorative and high-end applications. Thicknesses available are from 1 mm to 50 mm, and the maximum dimensions can go up to 2 meters by 6 meters, making them aesthetically pleasing and durable.
Adam Stainless is committed to providing an experience of excellence to all its customers who purchase our Premium Quality Stainless Steel 904L Sheets and Plates by providing complete documents. We send the commercial invoice, packing list, fumigation certificate, heat treatment chart, quality assurance plan, and NABL-approved lab test report, which certifies the originality and high quality of our products. To further boost the confidence of our clients, we provide the Stainless Steel 904L Sheets and Plates with a range of test certificates, such as MTC as per EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate. We express our promising commitment to our customers in terms of satisfaction, and on going to evolve into excellence in product quality.
These Stainless Steel 904L Sheets and Plates find extensive use in chemical processing, seawater handling, and marine environments due to their remarkable resistance to corrosion and stress cracking. They play a crucial role in the production of heat exchangers, pressure vessels, storage tanks, and piping systems. Moreover, their high-quality surface finish and durability make them ideal for architectural projects, luxury yachts, and pharmaceutical equipment. Industries that depend on high purity and durability standards, such as petrochemical, power generation, and food processing, greatly benefit from these exceptional materials.
