Home > Sheet and Plates > Stainless Steel 347/347H Sheet and Plates
Adam Stainless, a reputable manufacturer and supplier located in Canberra, Australia, specializes in top-notch Stainless Steel 347/347H Sheets and Plates that are engineered for outstanding performance in high-temperature and corrosive settings. These sheets and plates are crafted with cutting-edge technology and rigorous quality control measures to guarantee durability, precision, and resistance to oxidation. Adam Stainless ensures that their products comply with international standards, catering to a wide range of industrial needs. With remarkable formability and weldability, the Stainless Steel 347/347H Sheets and Plates from Adam Stainless are perfect for industries that require strength, reliability, and a long service life even in extreme operating conditions.
The Stainless Steel 347/347H Sheets and Plates are stabilized austenitic stainless steels that include chromium, nickel, and columbium (niobium), which significantly boost their resistance to intergranular corrosion. The 347H variant features a higher carbon content, enhancing its strength at elevated temperatures. These alloys boast impressive mechanical properties, with a tensile strength of about 515 MPa, yield strength of 205 MPa, and an elongation of 40%. They maintain excellent oxidation resistance up to 870°C and provide outstanding toughness and creep resistance, making them suitable for both cryogenic and high-temperature applications.
Stainless Steel Sheets and Plates Specification : ASTM A240 / ASME SA240
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| C | Cr | Mn | Ni | P | S | Si | Cb/Ta | |
|---|---|---|---|---|---|---|---|---|
| 347 | 0.08 max | min: 17.0 max: 20.0 | 2.0 max | min: 9.0 max: 13.0 | 0.04 max | 0.30 max | 0.75 max | min:10x C max: 1.0 |
| 347H | min: 0.04 max: 0.10 | min: 17.0 max: 20.0 | 2.0 max | min: 9.0 max: 13.0 | 0.03 max | 0.30 max | 0.75 max | min:10x C max: 1.0 |
| Grade | Tensile Strength ksi (MPa) min | Yield Strength 0.2% ksi offset ksi (MPa) min | Elongation (% in 50mm) min | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
|---|---|---|---|---|---|
| 347/347H | 75 (515) | 30 (205) | 40 | 201 | 95 |
Contact us to get a quick quote for your requirement.

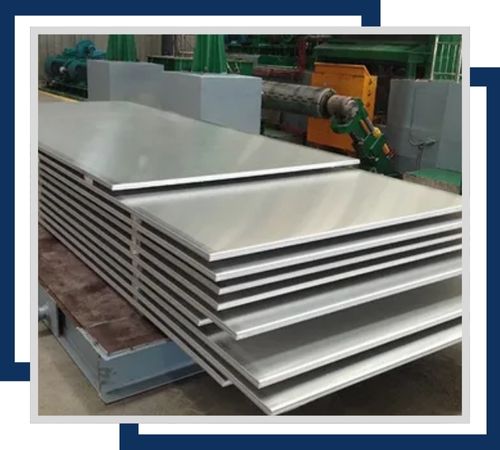

Known for excellent corrosion resistance, these sheets are produced through hot rolling. They are available in thicknesses from 3mm to 50mm and widths up to 2000mm, providing durability in high-temperature environments and are used in heavy-duty applications

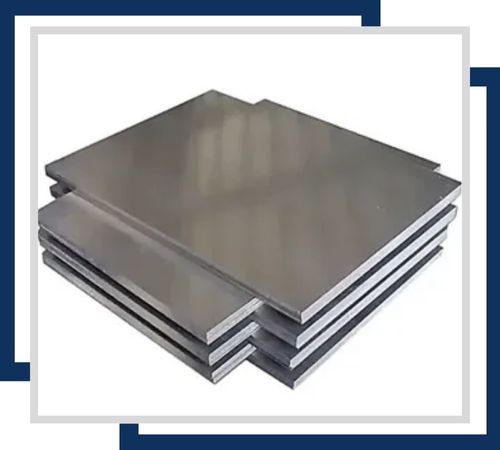

These plates are cold-rolled for a smooth finish and have superior corrosion resistance. They are available in thicknesses ranging from 0.5mm to 12mm and widths up to 1500mm, which is ideal for precision applications and structural components.

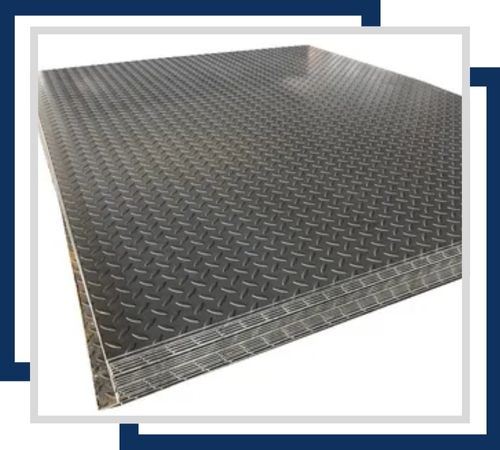

These plates offer excellent corrosion resistance, with a patterned surface for better traction and safety. They are available in various thicknesses, from 1.5mm to 6mm, and up to 1500mm in width, which makes them useful for flooring and industrial applications.

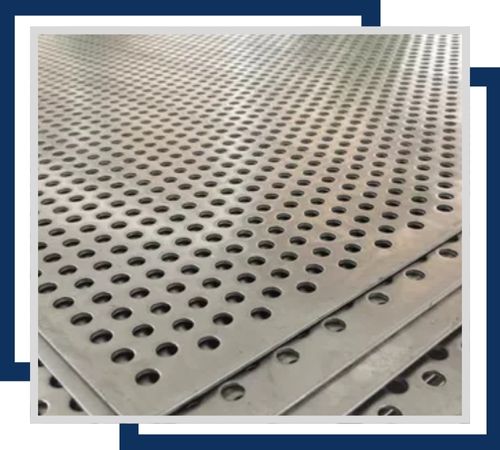

Offering high corrosion resistance, the sheets are perforated in a variety of hole patterns to achieve ventilation and aesthetics. Typical thicknesses vary between 0.5mm to 6mm, while the width may be up to 2000mm for filter applications and decorative panels.

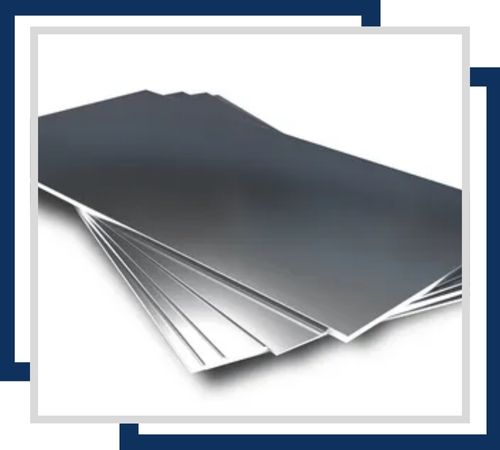

The shim sheets have excellent corrosion resistance. Thickness can range from 0.1mm to 2mm, width up to 1000mm, and are precision cut for exact measurements. They are used where fine adjustments are necessary.

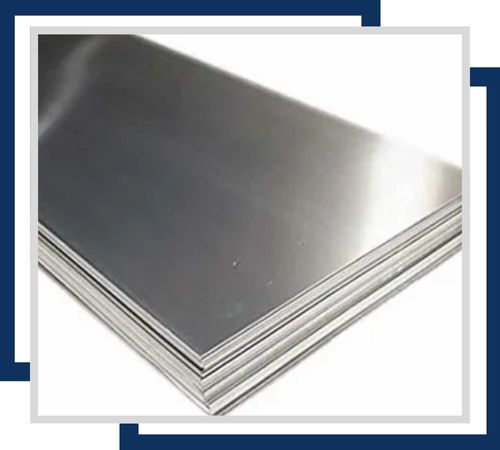

These plates feature outstanding corrosion resistance, and have a polished surface for enhanced appearance and cleanliness. They are available in widely used thicknesses that range from 3mm to 25mm and widths up to 2000mm. They find applications mainly in decorative and sanitary use.
Adam Stainless will provide customers with an unmatched customer experience based on complete documentation about our superior Stainless Steel 347 and 347H sheets and plates. Essential documents including commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports shall be provided from time to time by us in our products that ascertain the genuity and exceptional quality of products supplied to the valuable customers. Our Stainless Steel 347/347H sheets and plates also include a test certificate: MTC as per EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third Party Inspection Certificates, in regard to our strict quality commitment toward our valued clients.
Stainless Steel 347/347H Sheets and Plates find extensive use in industries where heat and corrosion resistance are crucial. Typical applications include exhaust manifolds, heat exchangers, boiler tubes, pressure vessels, chemical processing equipment, and components for refineries. Their ability to endure prolonged exposure to high temperatures makes them ideal for sectors like aerospace, petrochemical, and power generation. Additionally, they are utilized in the food processing and pharmaceutical industries due to their superior hygiene and ease of fabrication. These sheets and plates guarantee reliability and longevity in challenging operational environments.
