Adam Stainless, a reputable manufacturer and supplier located in Canberra, Australia, specializes in high-quality Stainless Steel 436 Sheets and Plates tailored to meet a variety of industrial needs. Renowned for their durability and resistance to corrosion, these sheets and plates deliver exceptional performance in environments exposed to heat and oxidation. With a commitment to precise manufacturing standards and cutting-edge technology, Adam Stainless guarantees consistent quality, dimensional accuracy, and reliability in every product. The Stainless Steel 436 Sheets and Plates are perfect for clients looking for materials that offer cost efficiency, mechanical strength, and long-lasting performance in both industrial and commercial settings.
Stainless Steel 436 Sheets and Plates are made from ferritic stainless steel, which includes chromium, molybdenum, and small amounts of titanium to enhance stability and corrosion resistance. Typically, they contain about 16–18% chromium and 0.75% molybdenum. These alloys are known for their excellent resistance to oxidation, heat scaling, and stress corrosion cracking. In terms of mechanical properties, they provide good strength, ductility, and thermal conductivity. With a tensile strength of around 415 MPa and commendable formability, Stainless Steel 436 serves as a cost-effective alternative to higher-grade steels while still performing effectively in high-temperature conditions.
| Specifications | ASTM A240, ASME SA240 |
| Standard | JIS, ASTM, AISI, GB, EN, DIN |
| Surface | 2B, BA, HL, No. 4, Mirror etc. |
| Finish | Cold rolled, Hot rolled |
| Thickness | 0.3mm–100mm |
| Size | 1000mm, 1219mm, 1250mm, 1500mm, 1524mm, 2000mm |
| Grade | Fe | Cr | Ni | Mo | Mn | Nb | Si | Ti | Ta | C | P | S |
| SS 436 | 81.3 | 16 | – | 1 | 1 | 0.5 | – | – | 0.5 | 0.12 | 0.040 | 0.030 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Hardness |
| 0.28 lbs/in3 7.74 g/cm3 | 2600 – 2750 ° F (1427 – 1510 °C) | 77 KSI min (531 MPa min) | 53 KSI min (365 MPa min) | 40 % | Rb 89 max |
Contact us to get a quick quote for your requirement.

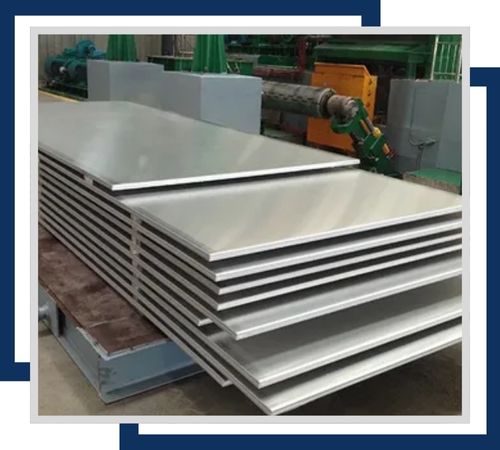

The alloy 436 stainless steel hot-rolled sheets possess excellent resistance to corrosion under conditions of high stress. Normally available in a form whose thickness runs from 3 mm up to 25 mm and width up to 2000 mm, this sheet is used in fabrication and construction.

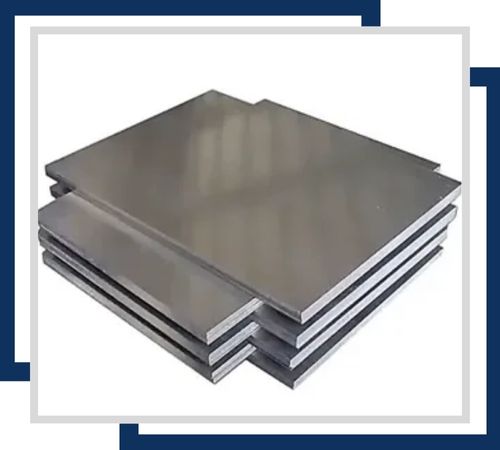

Stainless Steel 436 Cold Rolled Plates offer excellent resistance to corrosion as well as an excellent surface finish. Available in thicknesses of 0.5 mm-6 mm, and widths of up to 1500mm, these plates are perfect for applications that are precise and aesthetically designed.

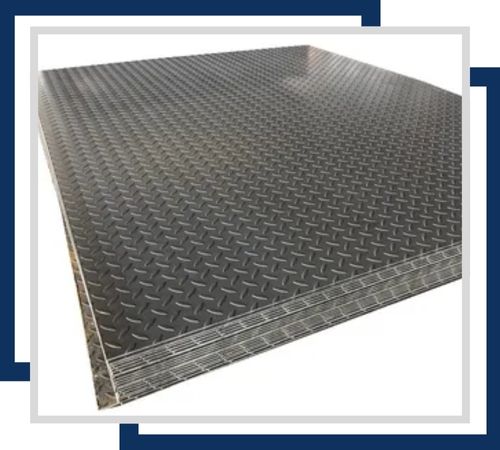

Stainless Steel 436 Chequered Sheets provide good corrosion resistance along with an anti-slip surface. The sheets are available in 1 mm to 6 mm thickness and in standard sizes up to 2000 mm x 1000 mm. Stainless Steel 436 Chequered Sheets are often used in flooring and safety applications.

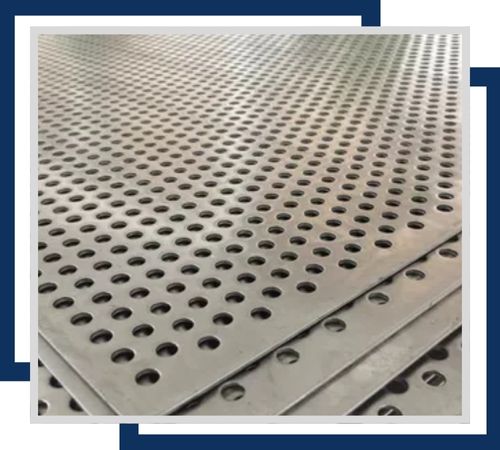

High-quality corrosion resistance is offered by stainless steel 436 perforated plates, available with custom hole patterns for effective ventilation and filtration. The product is supplied in thicknesses from 0.8 mm to 5 mm and sheet sizes up to 2000 mm x 1000 mm, and used in industrial and architectural applications.

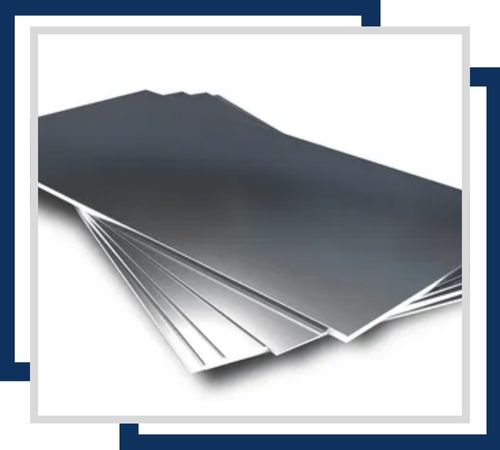

Stainless Steel 436 Shim Sheets, being reliable to corrosion resistance along with precise thicknesses for gap filling and alignment, are also available in usual thicknesses varying from 0.1mm to 3mm and usually up to a size of 3000 mm x 1500 mm with machinery and assembly processes.

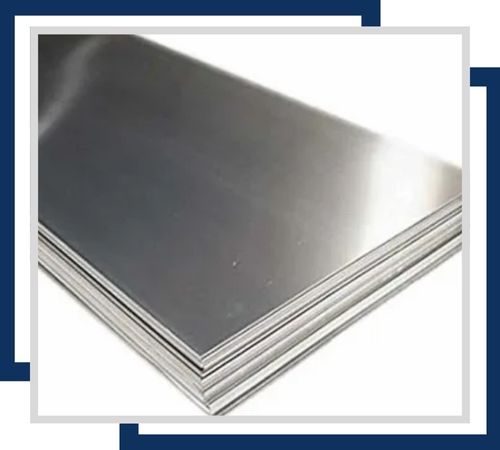

High corrosion resistance coupled with a polished finish, these Stainless Steel 436 Polished Plates are stocked in sizes up to 1500 mm x 3000 mm and can be supplied between 0.5 mm – 6mm thick. Such plates are predominantly used in decoration and architectural areas.
Adam Stainless has set out a commitment to provide the best customer services with complete documentation of its high-quality Stainless Steel 436 Sheets and Plates. The company provides primary documents such as commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports. All these documents ensure the genuinity and quality at their highest level of products and tend to increase trust and confidence among its users. Along with this, we also supply Stainless Steel 436 Sheets and Plates with multiple test certificates issued on MTC as per EN 10204/3.1b, PMI Test Certificate, radiography test reports on 100%, and third-party inspection certificate. The above proofs confirm our high regards for satisfaction to the esteemed customer and continually seeking excellence through the products produced by us.
You’ll find Stainless Steel 436 Sheets and Plates commonly used in automotive exhaust systems, heat exchangers, and furnace components, thanks to their robust resistance to heat and corrosion. They’re also found in household appliances, food processing equipment, and architectural trim, where both aesthetic appeal and oxidation resistance are key. In various industrial sectors, these sheets and plates play a vital role in thermal processing, chemical handling, and energy production equipment. Their versatility, along with good weldability and formability, makes Stainless Steel 436 a top choice for applications that demand durability and long-term reliability in challenging environments.
