Home > Sheet and Plates > Stainless Steel 316/316L Sheet and Plates
Located in Canberra, Australia, Adam Stainless stands out as a top manufacturer and supplier of premium stainless steel products, with a focus on 316 and 316L sheets and plates. Known for their precision engineering and robust materials, Adam Stainless guarantees that every sheet and plate adheres to international standards for corrosion resistance and strength. Their offerings are designed to meet a diverse array of industrial and commercial needs, ensuring reliable performance even in the toughest environments. With a strong commitment to excellence, Adam Stainless delivers customized solutions and prompt service, making them a go-to partner for businesses in construction, marine, chemical, and food processing industries.
The 316 and 316L stainless steel sheets and plates are primarily made up of iron, with 16–18% chromium, 10–14% nickel, and 2–3% molybdenum. Notably, 316L has a lower carbon content, which enhances its weldability. These alloys are celebrated for their outstanding corrosion resistance, especially in the presence of chlorides and acidic conditions. On the mechanical side, they boast high tensile and yield strength, exceptional toughness, and stability at elevated temperatures, making them ideal for structural and industrial applications where durability and performance are paramount.
| Standard | ASTM A240, ASME SA240 |
| Thickness | 0.1mm to 12 mm Thk |
| Sheet and Plate Size | 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sandblast, Brush, etching. |
| Finish | Hot rolled (HR), Cold rolled (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated). |
|
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
|
|
316 |
Min |
– |
– |
– |
0 |
– |
16.0 |
2.00 |
10.0 |
– |
|
Max |
0.08 |
2.0 |
0.75 |
0.045 |
0.03 |
18.0 |
3.00 |
14.0 |
0.10 |
|
|
316L |
Min |
– |
– |
– |
– |
– |
16.0 |
2.00 |
10.0 |
– |
|
Max |
0.03 |
2.0 |
0.75 |
0.045 |
0.03 |
18.0 |
3.00 |
14.0 |
0.10 |
|
ade |
Tensile Str
(MPa) min |
Yield Str
0.2% Proof
(MPa) min |
Elong
(% in 50mm) min |
Hardness |
|
|
Rockwell B (HR B) max |
Brinell (HB) max |
||||
|
316 |
515 |
205 |
40 |
95 |
217 |
|
316L |
485 |
170 |
40 |
95 |
217 |
Contact us to get a quick quote for your requirement.

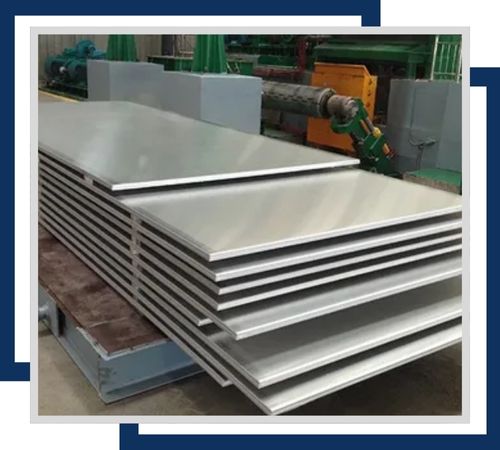

Stainless Steel 316 Hot Rolled Plates are great plates for numerous applications due to excellent corrosion resistance. The hot rolled plates available vary in size, from 4mm up to 150mm in thickness, and from 2000mm in width.

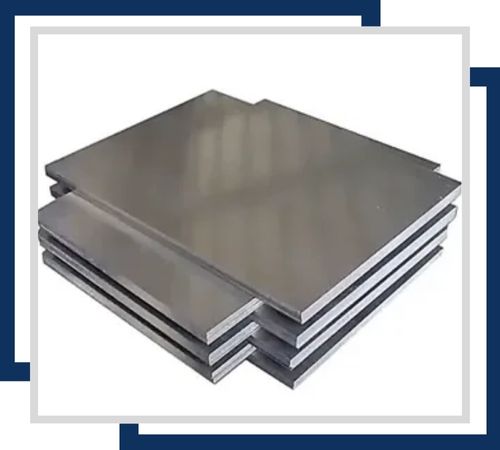

Stainless Steel 316L Cold Rolled Sheets are famous for their high corrosion resistance. The sheets come in thickness from 0.3mm to 6mm and width up to 2000mm. These sheets offer a smooth finish and are used in applications where precision and aesthetic appeal are required.

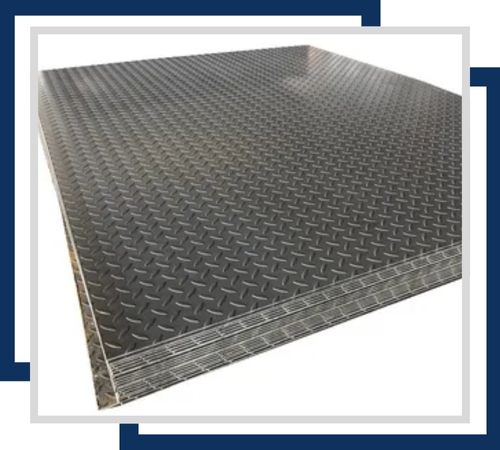

The chequered stainless steel 316L sheets have a raised diamond pattern that gives it a better grip and less slipping. The thicknesses of the sheets are from 3mm to 8mm, and sizes are up to 1500mm x 3000mm for flooring and walkways.

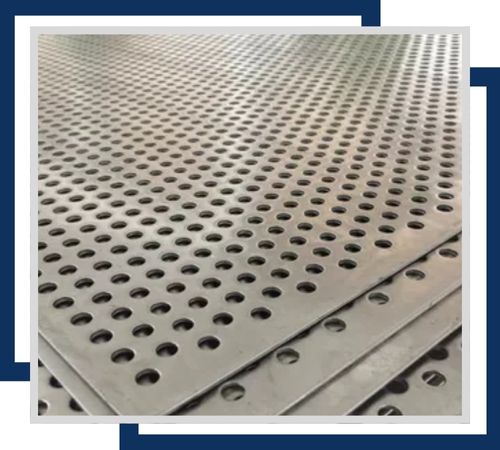

Stainless Steel 316 Perforated Plates provide superior corrosion resistance. The products are available in different thicknesses of 0.4mm to 12mm with a range of hole sizes and patterns, suitable for several industrial applications in filtration and ventilation.

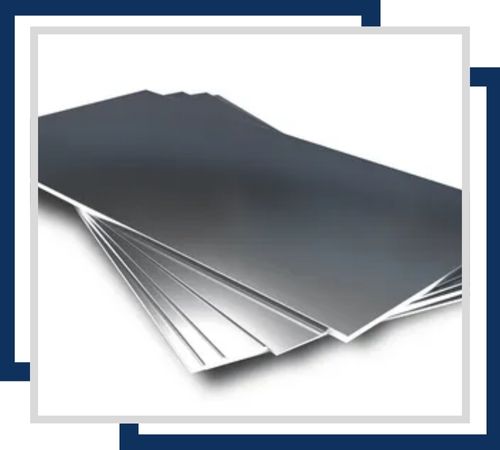

Stainless steel 316L shim sheets-very thin material, very sharp, corrosion resisting, with many applications for spacers and other alignment needs in machinery and structurals from 0.05mm up to 3mm with cut options by specific size or width.

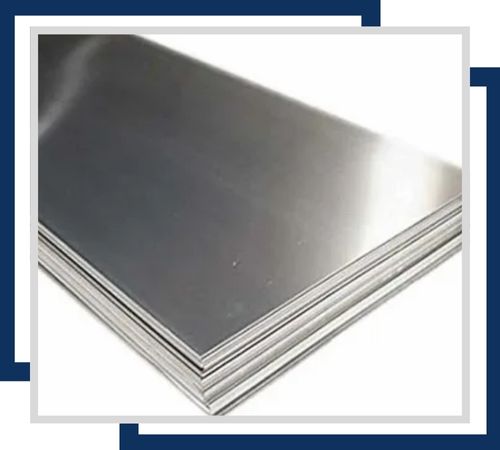

Stainless Steel 316L Polished Plates have high corrosion resistance along with a bright mirror finish. The plates come in a variety of thickness, from 0.5mm to 50mm, and sizes up to 2000mm x 6000mm for decorative purposes, architectural applications, and other heavy industrial uses.
Adam Stainless focuses on an hassle-free experience for customers while providing rich documentation for our stainless steel sheets/plates of high-quality type 316 and 316L. We guarantee the authenticity and superior quality of our products with guaranteed documents such as commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports. Our Stainless Steel 316/316L Sheets and Plates also come with various test certificates which include MTC in accordance with EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third Party Inspection Certificates. Our company promises customer satisfaction and keeps on looking forward to the product excellence.
You’ll find 316 and 316L stainless steel sheets and plates in a variety of settings, including chemical processing equipment, marine applications, food and beverage processing, pharmaceutical machinery, and architectural projects. Their corrosion-resistant and hygienic characteristics make them perfect for harsh environments and sanitary uses. Moreover, these sheets and plates are utilized in heat exchangers, storage tanks, pressure vessels, and structural components, providing long-lasting reliability and minimal maintenance. Adam Stainless ensures that every product meets stringent dimensional and quality standards, supporting both large-scale industrial projects and specialized manufacturing requirements.
