Home > Sheet and Plates > Stainless Steel Chequered Plate
Adam Stainless, a top-notch manufacturer and supplier located in Canberra, Australia, specializes in high-quality Stainless Steel Chequered Plates that are celebrated for their strength, durability, and resistance to corrosion. These plates showcase a unique raised pattern that offers fantastic anti-slip properties, making them perfect for flooring, platforms, and stair treads in both industrial and commercial settings. Crafted from premium stainless steel using cutting-edge processing techniques, Adam Stainless guarantees precise dimensions, smooth finishes, and outstanding mechanical performance. With a strong focus on innovation, quality, and customer satisfaction, their chequered plates are a dependable choice for safe and long-lasting structural applications.
It is highly durable and corrosion resistant which makes stainless steel checkered plates an ideal material for applications in harsh environments. The textured surface makes it slip-resistant, thereby reducing the risk of slips and falls. These plates resist impact and wear very well thus, causing little concern for maintenance and having a long service life. They can also be easily cleaned and maintained without losing their elegance. They fit modern and sleek aesthetic designs for industrial as well as for decorative applications. This versatility has made it popular with builders for several construction and flooring applications.
ASTM A182 / ASME SA182
ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
1000mm x 2000mm, 1000mm x 2500mm, 1220mm x 2440mm, 1250mm x 2500mm, 1500mm x 3000mm
| Grade | C | Mn | P | S | Si | Cr | N | Ni | Fe |
| SS Chequered 304 Plates | 0.07max | 2.0max | 0.045max | 0.03max | 0.75max | min: 18.0 max: 20.0 | – | min: 8.0 max: 10.5 | – |
| SS Chequered 304L Sheets | 0.03max | 2.0max | 0.045max | 0.03max | 0.75max | min: 18.0 max: 20.0 | 0.10 max | min: 8.0 max: 12.0 | – |
| SS Chequered 304H Plate | min: 18.0 max:20.0 | min: 8.0 max: 10.5 | 0.75 max | 2.0 max | min: 0.04 max:0.10 | 0.045 max | 0.10 max | 0.03 max | – |
| SS Checkered 316 Sheets | Min | – | – | 0 | – | – | 10.0 | 16.0 | – |
|---|---|---|---|---|---|---|---|---|---|
| Max | 0.08 | 0.75 | 0.045 | 2.0 | 0.03 | 14.0 | 18.0 | 0.10 | |
| SS Checker 316L Plates | Min | – | – | – | – | – | 10.0 | 16.0 | – |
| Max | 0.03 | 0.75 | 0.045 | 2.0 | 0.03 | 14.0 | 18.0 | 0.10 | |
| SS Chequered 316H Sheet | Min | 0.04 | 0 | – | 0.04 | – | 10.0 | 16.0 | – |
| max | 0.10 | 0.75 | 0.045 | 0.10 | 0.03 | 14.0 | 18.0 | – |
| Grade | Density | Yield Strength (0.2%Offset) | Tensile Strength | Melting Point | Elongation |
| Stainless Steel 304 / 304L Checkered Plate | 8.0 g/cm3 | Psi 30000, MPa 205 | Psi 75000, MPa 515 | 1400 °C (2550 °F) | 35 % |
| Stainless Steel 304H Checkered Sheet | 8.0 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 | 1400 °C (2550 °F) | 40 % |
| Stainless Steel 310 Checker Plate | 7.9 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 | 1402 °C (2555 °F) | 40 % |
| Stainless Steel 316 Checkered Sheet | 8.0 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 | 1400 °C (2550 °F) | 35 % |
| Stainless Steel 316L Checker Plate | 8.0 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 | 1399 °C (2550 °F) | 35 % |
| Stainless Steel 317 Checker Sheets | 7.9 g/cm3 | Psi 30000, MPa 205 | Psi 75000, MPa 515 | 1400 °C (2550 °F) | 35 % |
| Stainless Steel 321 Checkered Plates | 8.0 g/cm3 | Psi 30000, MPa 205 | Psi 75000, MPa 515 | 1457 °C (2650 °F) | 35 % |
| Stainless Steel 347 Checker Sheets | 8.0 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 | 1454 °C (2650 °F) | 35 % |
| Stainless Steel 904L Checker Plate | 7.95 g/cm3 | Psi 32000, MPa 220 | Psi 71000, MPa 490 | 1350 °C (2460 °F) | 35 % |
Contact us to get a quick quote for your requirement.

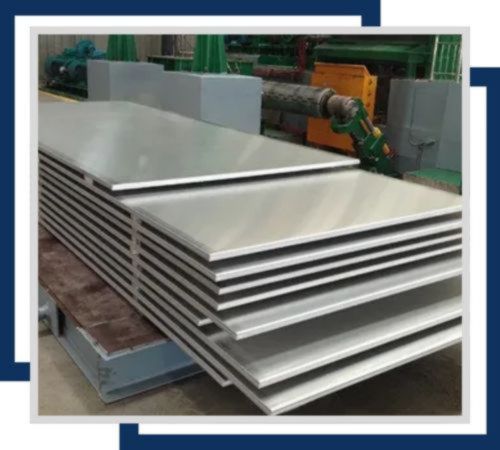

304 stainless steel checker plates are durable, non-corrosive, and offer a slip-resistant surface. Ideal for industrial and commercial use, they combine strength with a lightweight, aesthetically pleasing design.

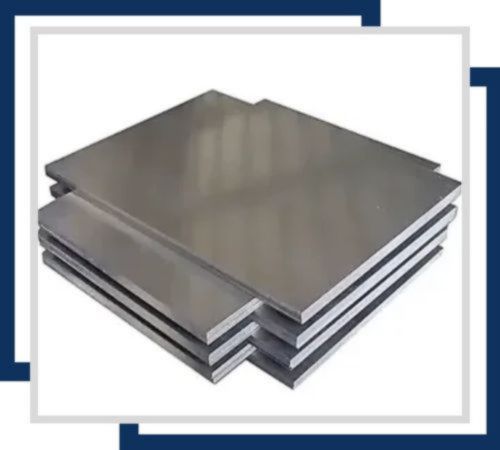

SS S30409 checker plates are high-quality stainless steel with excellent corrosion resistance and durability. Ideal for demanding environments, they offer a slip-resistant surface and maintain structural integrity under stress.

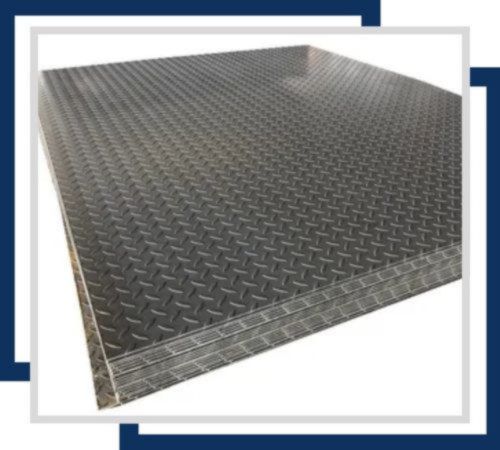

Stainless Steel S31609 chequered plates provide superior corrosion resistance and strength, making them ideal for marine and chemical environments. They offer excellent durability, slip resistance, and maintain integrity under harsh conditions.
Austenitic stainless steel chequered plates offer exceptional corrosion resistance, strength, and durability. Ideal for demanding environments, they provide a slip-resistant surface and maintain structural integrity in various industrial and commercial applications.
Stainless Steel Chequered Plates are mainly composed of alloys that include Chromium (18–20%), Nickel (8–10.5%), and Iron, along with trace amounts of Manganese, Silicon, and Carbon. Depending on the specific grade (SS 304, 316, or 202), Molybdenum (2–3%) may be included to boost corrosion resistance. These plates demonstrate impressive tensile strength ranging from approximately 515–620 MPa and yield strength around 205 MPa. They provide excellent toughness, hardness, and formability while resisting oxidation and wear, ensuring top-notch performance even under heavy loads and tough environmental conditions.
Yes, Stainless Steel Chequered Plates are suitable for hygienic and sanitary applications due to their corrosion resistance, ease of cleaning, and non-porous surface, making them ideal for food and medical industries.
Stainless Steel Chequered Plates are generally resistant to galvanic corrosion when used in appropriate environments. However, in the presence of dissimilar metals and moisture, galvanic corrosion can occur if proper precautions aren’t taken.
Yes, Stainless Steel Chequered Plates are suitable for cryogenic applications due to their excellent low-temperature strength, durability, and resistance to brittle fracture, making them ideal for extreme environments.
To select the right Stainless Steel Chequered Plate, consider factors such as corrosion resistance, load-bearing capacity, surface finish, thickness, and environmental conditions, ensuring compatibility with your specific application needs.
Stainless Steel Chequered Plates find extensive use in flooring, stair treads, walkways, ramps, and industrial platforms where slip resistance and durability are crucial. Their corrosion-resistant and easy-to-clean surface makes them perfect for food processing, chemical plants, marine environments, and architectural projects. They are also utilized in the transportation sector for truck beds, loading docks, and ship decks. Thanks to their aesthetic appeal, they are increasingly favored in interior design and decorative structures. Adam Stainless Chequered Plates seamlessly blend functionality with durability, making them a smart choice for various applications.
