Adam Stainless, located in Canberra, Australia, stands out as a top-notch manufacturer and supplier of premium stainless steel forged fittings. Known for their precision engineering and impressive performance, these fittings are designed to meet strict industry standards, ensuring they can be relied upon in a variety of applications. Adam Stainless prioritizes quality, durability, and corrosion resistance in every product, making their forged fittings perfect for tough environments. With a strong focus on customer satisfaction, the company provides a diverse range of sizes and specifications to meet both commercial and industrial demands. Their expertise guarantees a smooth fit into any piping or fluid-handling system.
The stainless steel forged fittings from Adam Stainless are primarily made from high-grade stainless steel alloys like 304, 316, and 316L. These materials offer outstanding corrosion resistance, toughness, and durability. The fittings are produced through a meticulous forging process, which boosts their strength and consistency. They feature high tensile strength, exceptional hardness, and impressive resistance to pressure and temperature changes. Their mechanical properties include excellent ductility, impact resistance, and the ability to endure chemical and environmental stresses, ensuring safe and reliable performance in both high-pressure and high-temperature situations.
| Specifications | ASTM A403/ ASME SA403 |
|---|---|
| Size | Seamless Butt Weld Fittings : 1/2″ – 10″ Welded Butt Weld Fittings : 1/2″ – 48″ |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni |
| Stainless Steel Forged Fittings | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
We ensures that all stainless steel forged fittings undergo rigorous testing to ensure quality, strength and durability. Each product is thoroughly inspected using advanced techniques such as dimensional testing, pressure testing and material analysis. The company offers a full range of certifications, including ASTM, ISO, and other industry standards, assuring reliable and compliant fittings.

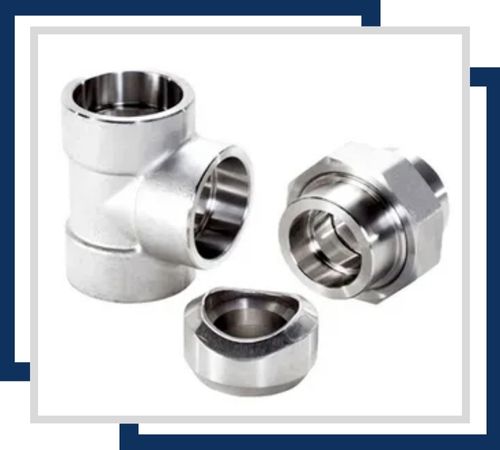

Corrosion-resistant and durable, these fittings are ideal for high-pressure applications. They are typically available in sizes ranging from 1/8 inch to 4 inches, with dimensions conforming to ANSI B16.11 standards, ensuring a secure and leak-proof connection.

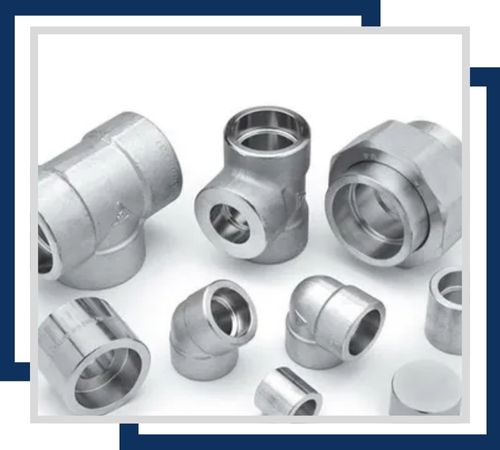

These fittings offer excellent corrosion resistance and are suitable for moderate to high-pressure applications. Sizes range from 1/8 inch to 6 inches. They conform to ASTM A105 or A182 standards, providing reliable connections with threaded ends for easy installation.

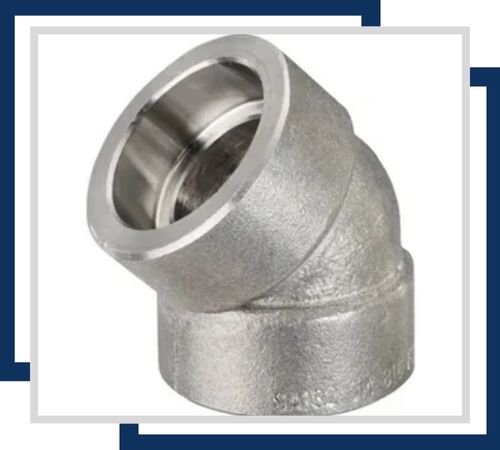

Designed for high-pressure systems, these elbows provide corrosion resistance and are available from 1/2 inch to 4 inches. They are made to ANSI B16.11 specifications, facilitating smooth directional changes in piping systems with minimal pressure loss.

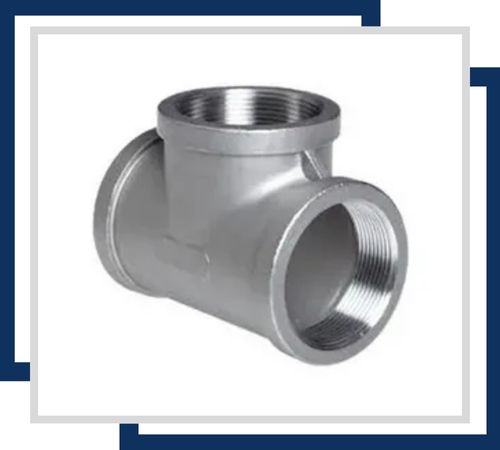

Corrosion-resistant and versatile, threaded tees come from 1/8 inch to 6 inches. They adhere to ASTM standards, enabling the branching of pipes at a 90-degree angle while ensuring a secure and leak-free connection for various piping systems.

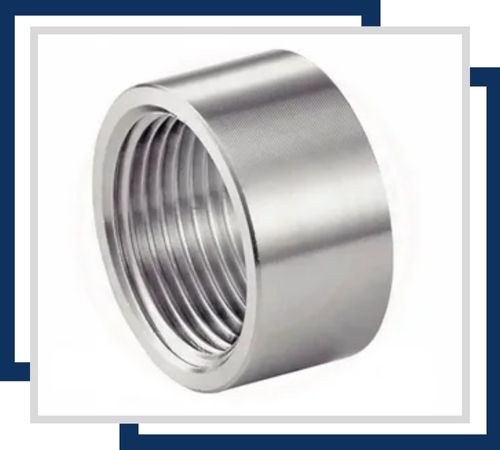

Half couplings are available in sizes from 1/8 inch to 6 inches, offering corrosion resistance and strength. They conform to ASTM A105 or A182 standards and are used to connect pipes or tubes, providing a reliable interface in threaded applications.

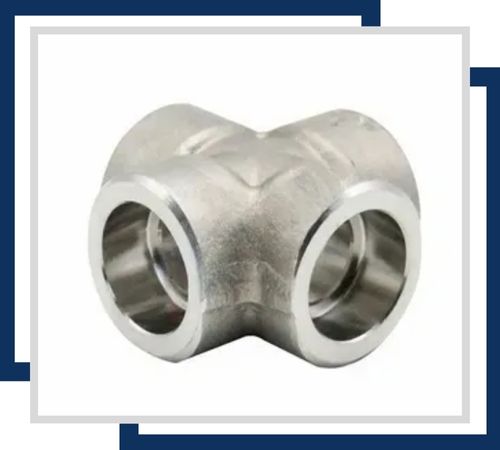

These fittings, resistant to corrosion and high-pressure environments, are available in sizes from 1/2 inch to 4 inches. They meet ANSI B16.11 standards and provide four-way connections, enabling the branching of pipes in multiple directions within a system.
Stainless steel forged fittings are commonly utilized across various industries that require strong and dependable piping connections. They play a crucial role in chemical processing, oil and gas, water treatment, power generation, and the food and beverage sectors due to their resistance to corrosion, high pressure, and extreme temperatures. These fittings securely connect pipes, valves, and equipment, maintaining the integrity of fluid or gas systems. Additionally, they find applications in marine and pharmaceutical fields where hygiene and safety are paramount. Adam Stainless’s forged fittings guarantee efficient, leak-proof, and long-lasting connections, making them a reliable choice for any project.
