Adam Stainless, based in Canberra, Australia, stands out as a top manufacturer and supplier of high-quality Stainless Steel 304/304L Forged Fittings, serving clients not just in Dubai, UAE, but around the globe. Renowned for their precision engineering and reliability, Adam Stainless adheres to international standards, delivering forged fittings that promise durability, corrosion resistance, and exceptional mechanical strength. Their 304/304L forged fittings are specifically designed to excel in challenging environments. With a strong focus on quality assurance, innovation, and customer satisfaction, Adam Stainless has earned its reputation as a trusted name in the global stainless steel industry.
Stainless Steel 304/304L Forged Fittings are made up of 18–20% chromium and 8–10.5% nickel, with 304L featuring a lower carbon content that enhances weldability and minimizes carbide precipitation. These fittings boast impressive corrosion resistance, oxidation resistance, and toughness, even in cryogenic conditions. They have a tensile strength of around 515 MPa, a yield strength of 205 MPa, and an elongation of 40%. This unique blend of strength, ductility, and resistance to chemical attack makes them perfect for high-pressure and high-temperature applications.
Stainless Steel Forged Fittings Specification : ASTM A182 / ASME SA182
Dimension Standard : ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799
Size : 1/8″ NB to 4″ NB

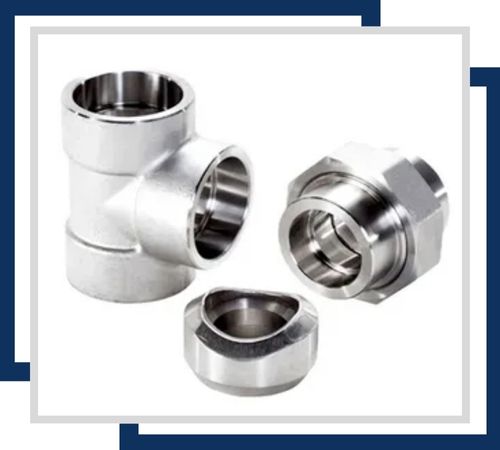

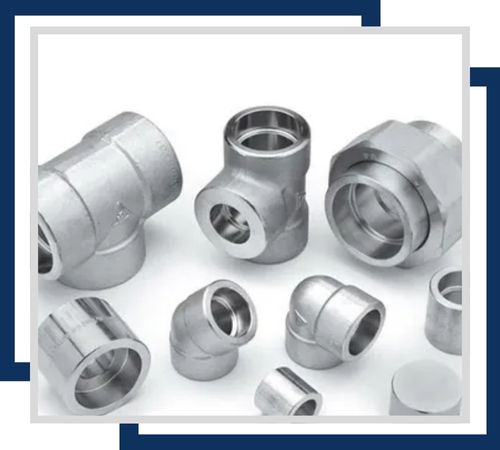

Type : Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Rating Pressure : Threaded End – 2000 /3000/ 6000 LBS. Socket-weld End – 3000 / 6000/ 9000 LBS.
| C | Mn | Si | P | S | Cr | Ni | N | |
|---|---|---|---|---|---|---|---|---|
| 304 | 0.07max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 10.5 | — |
| 304L | 0.03max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 12.0 | 0.10 max |
| Grade | Tensile Strength ksi (min) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
|---|---|---|---|---|---|
| 304 | 75 | 30 | 40 | 201 | 92 |
| 304L | 70 | 25 | 40 | 201 | 92 |
Contact us to get a quick quote for your requirement.
At Adam Stainless, all stainless steel 304/304L forged fittings are rigorously tested to ensure quality and reliability. Our products are certified to meet international standards, including ISO, ASTM and ASME specifications. We also provide material test certificates (MTCs), third-party inspection reports and traceability documents to verify performance and compliance.
These fittings offer excellent corrosion resistance, particularly against oxidation and atmospheric corrosion. Typically available in sizes ranging from ¼ inch to 4 inches, they are designed for high-pressure applications and are widely used in piping systems for their strength and durability.

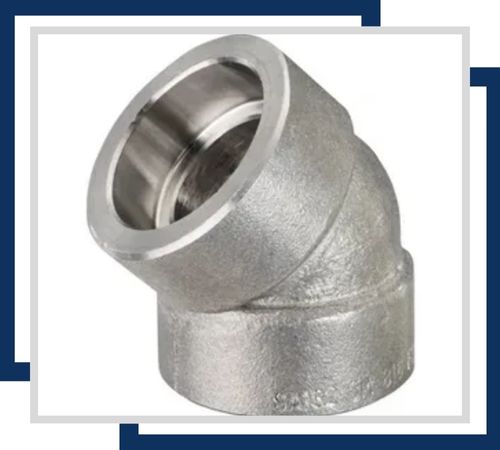

Offering excellent corrosion resistance, this 45-degree elbow is designed to redirect flow in a piping system. Available in sizes from ¼ inch to 4 inches, it is suitable for high-pressure and high-temperature applications, ensuring reliable and leak-proof connections.
Highly resistant to corrosion, this elbow facilitates changes in direction with a 45-degree bend. Standard sizes range from ½” to 4″ in diameter. It redirects its flow in pipelines, especially in chemical and petrochemical industries.

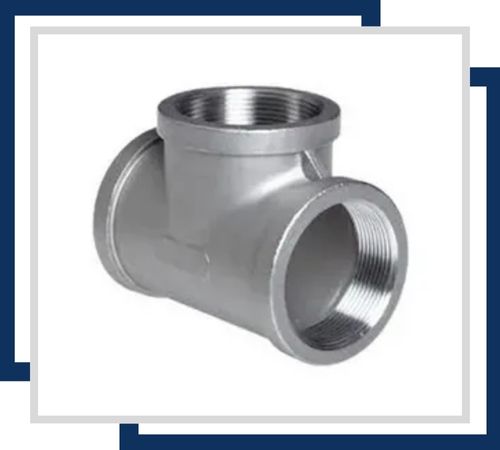

With robust corrosion resistance, this tee fitting branches off a pipeline. Available in sizes from ¼ inch to 4 inches, it allows flow distribution in three directions, making it versatile for various industrial applications.

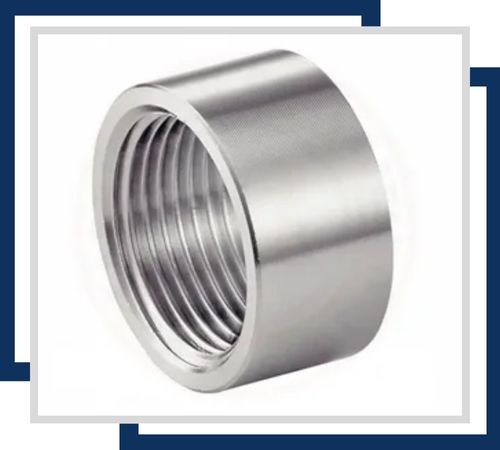

Providing strong corrosion resistance, this half coupling connects two pieces of pipe. Sizes range from ¼ inch to 4 inches, and it is ideal for applications requiring a reliable and secure connection in both industrial and residential settings.

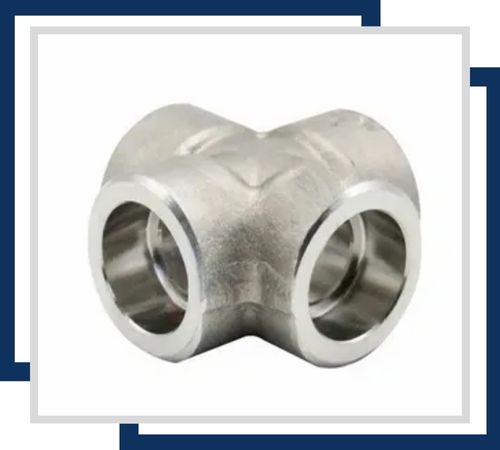

Featuring excellent corrosion resistance, this cross-fitting allows for connecting four pipes. It is available in sizes from ¼ inch to 4 inches and is commonly used in complex piping systems requiring multiple branches.
You’ll find Stainless Steel 304/304L Forged Fittings in a variety of industries, including oil and gas, petrochemical, food processing, pharmaceuticals, and power generation. Their outstanding resistance to corrosion and oxidation makes them ideal for piping systems, heat exchangers, pressure vessels, and hydraulic lines. These fittings are also well-suited for marine environments, chemical processing plants, and water treatment facilities. Known for their durability, leak-proof connections, and excellent performance under pressure, they provide long-lasting and reliable service across diverse industrial operations.
