Adam Stainless is a well-respected manufacturer and supplier of Stainless Steel 904L Forged Fittings right here in Canberra, Australia. They focus on delivering high-performance, corrosion-resistant solutions, crafting top-notch forged fittings that are built to thrive in the toughest industrial settings. Renowned for their precision engineering and remarkable durability, these fittings are designed to endure extreme temperatures, high pressure, and harsh chemical environments. With a solid reputation for providing dependable products and attentive customer service, Adam Stainless has established itself as a go-to source for Stainless Steel 904L forged fittings throughout Canberra and beyond in the Australian market.
At Adam Stainless, the 904L forged fittings are made from high-alloy austenitic stainless steel, which boasts elevated levels of chromium, nickel, molybdenum, and copper. This special blend gives them outstanding resistance to strong acids, such as sulfuric and phosphoric acids, along with protection against pitting and crevice corrosion in chloride-rich environments. The mechanical properties of Stainless Steel 904L include a tensile strength of about 490 MPa, a yield strength of 220 MPa, and impressive toughness even in freezing temperatures. These forged fittings are meticulously machined to guarantee tight, leak-proof connections in high-performance piping systems.
| Standards | ASTM B649 / ASME SB649 |
| Specifications | ASME B16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size Range | NPS 1/8″- 4″ (DN 6~100) |
| Rating Pressure | Threaded End – 2000/3000/6000 LBS. Socket weld End – 3000/6000/9000 LBS. |
| Type | Socket Weld, Screwed, BSP Threaded & NPT Threaded |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 904L | min. | – | – | – | – | – | 19.0 | 4.00 – 5.00 | 23.00 | – |
| max. | 0.20 | 2.00 | 1.00 | 0.045 | 0.035 | 23.0 | 28.00 | – | ||
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 904L | 490 | 220 | 35 | 75 | – |
Contact us to get a quick quote for your requirement.
We ensures the highest standards for its stainless steel 904L forged fittings, rigorously testing them for durability, strength and corrosion resistance. Each fitting undergoes extensive quality control procedures and is certified to appropriate industry standards. Certifications such as material testing reports (MTRs) and third-party reviews ensure reliability and efficiency.
These fittings are available in sizes from 1/8″ to 4″ and offer reliable, leak-free connections in high-pressure systems. They are commonly used in petrochemical, power generation, and oil and gas industries.
Threaded fittings, ranging from 1/8″ to 4″, provide ease of installation and maintenance. Suitable for low-pressure applications, they are widely used in plumbing, heating, and cooling systems.
These elbows, available in sizes from 1/8″ to 4″, allow for smooth directional flow changes. They are ideal for piping systems requiring high-strength connections and reduced flow resistance.
Threaded tees, in sizes ranging from 1/8″ to 4″, branch off the main line in a piping system. They provide reliable performance in various industrial and commercial applications.

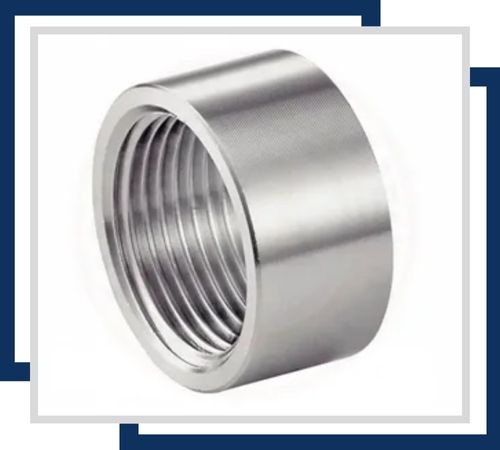

These couplings, available in sizes from 1/8″ to 4″, join two pipes or fittings. They offer easy assembly and disassembly, making them suitable for maintenance and repair work.

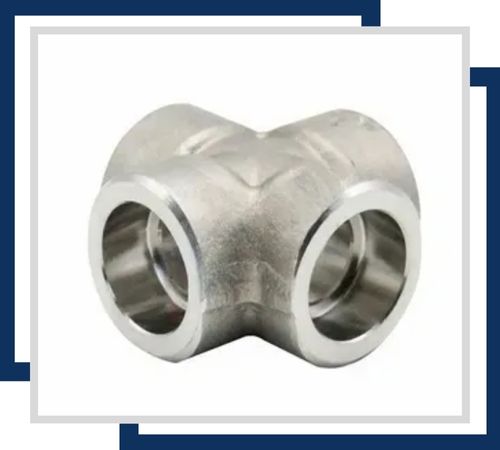

Socket weld crosses, ranging from 1/8″ to 4″, are designed to connect four pipes at a single junction. They are used in high-pressure applications where a strong, leak-proof connection is essential.
You’ll find Stainless Steel 904L Forged Fittings from Adam Stainless being utilized across Canberra’s chemical processing plants, oil and gas facilities, pulp and paper industries, pharmaceutical manufacturing, and marine applications. Their exceptional corrosion resistance makes them perfect for environments where standard stainless steels might not hold up. These fittings are essential for connecting, branching, or redirecting pipelines that transport highly corrosive fluids. Whether in challenging offshore conditions or in highly acidic processing units, Adam Stainless 904L forged fittings are up to the task.
