Adam Stainless stands out as a top-notch manufacturer and supplier of Stainless Steel 317/317L Forged Fittings right here in Canberra, Australia. They offer high-quality fittings that are built to perform exceptionally well in corrosive and high-pressure settings. With a solid reputation for precision and durability, Adam Stainless ensures that their forged fittings meet strict international standards, making them perfect for chemical processing, marine, and various industrial applications. Their commitment to responsive service, technical support, and dependable delivery has made them a trusted partner for stainless steel piping components across a broad spectrum of Australian industries.
The Stainless Steel 317/317L Forged Fittings from Adam Stainless are made from molybdenum-bearing austenitic stainless steel alloys. SS 317 features higher levels of chromium (18–20%), nickel (11–15%), and molybdenum (3–4%), which provide excellent resistance to pitting and crevice corrosion. On the other hand, SS 317L is the low-carbon variant, enhancing weldability and resistance to intergranular corrosion. Both grades boast a tensile strength of around 515 MPa and a yield strength of about 205 MPa, making them well-suited for tough conditions. These fittings are manufactured in accordance with ASTM A182 standards and come in socket weld and threaded types, available in various sizes and pressure ratings.
Specifications ASTM A182 & ASME SA182
Standard ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type Socketweld Fittings, Screwed-Threaded Fittings
Forged Fittings Items 45 Deg Elbow, 90 Deg Elbow, Forged Tee, Union, Full Coupling, Half Coupling, Cross, Cap, Swage Nipple, Plug, Bush, Welding Boss, Hexagonal Nipple etc.
Type Socketweld Fittings, Screwed-Threaded Fittings
Grade 317 / 317L UNS (S31700, S31703), DIN (1.4449, 1.4438)
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.845 min |
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
We ensures that all stainless steel 317/317L forged fittings go through rigorous testing procedures, including dimensional testing, mechanical testing and corrosion resistance testing. The products are certified to meet international quality standards, including ASTM, ASME, and EN specifications, providing customers with guaranteed reliability and performance for a range of industrial applications

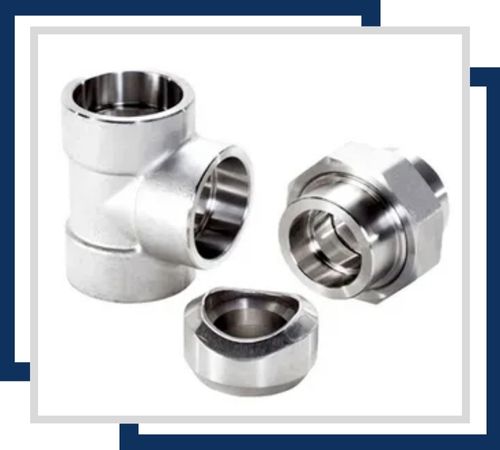

Stainless Steel 317 Socket Weld Fittings are renowned for their excellent corrosion resistance and are commonly used in high-pressure applications. They are available in sizes ranging from 1/8″ to 4″ and are manufactured to meet ASTM standards, ensuring strong, leak-proof connections.

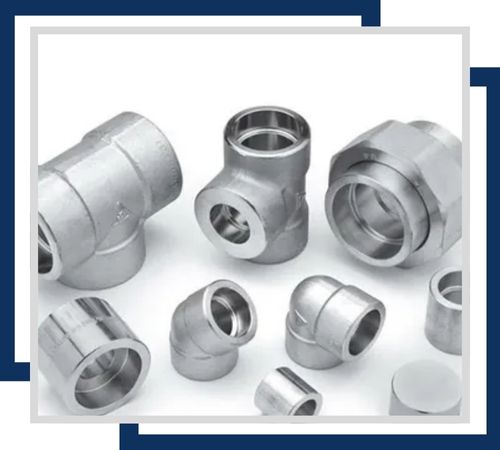

Offering high corrosion resistance, these fittings are designed for easy installation in various piping systems. Common sizes range from 1/8″ to 6″ NPT, providing versatility and robustness in handling fluids and gases.

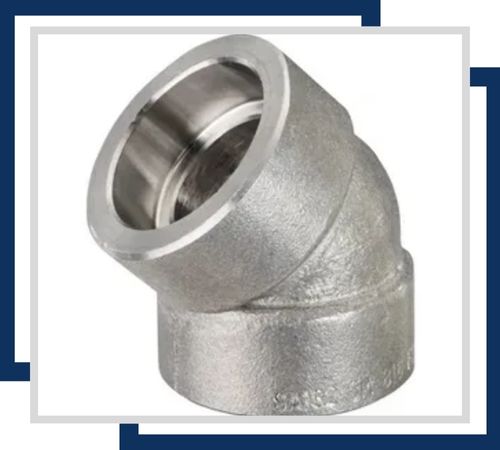

With superior corrosion resistance, this elbow allows for smooth directional changes in piping systems. It is available in sizes from 1/2″ to 4″ and is designed to meet ASTM specifications for high strength and durability.

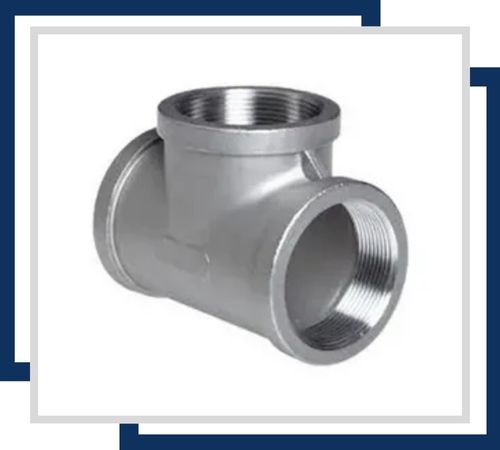

This fitting combines high corrosion resistance with structural integrity, ideal for branching pipes at a 90-degree angle. Available in sizes from 1/8″ to 6″ NPT, it ensures reliable and secure connections.

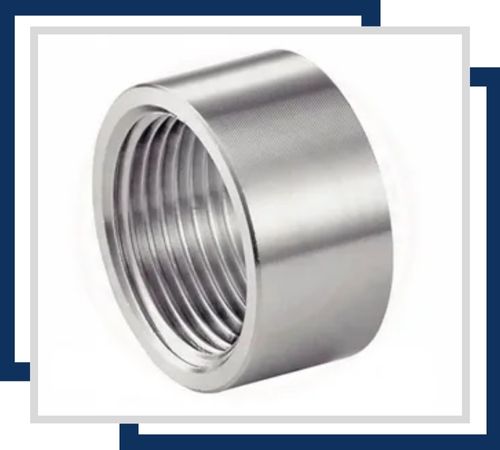

Known for its excellent corrosion resistance, this half coupling connects two threaded pipes or fittings. Common sizes include 1/4″ to 4″ NPT, providing a strong and durable link.

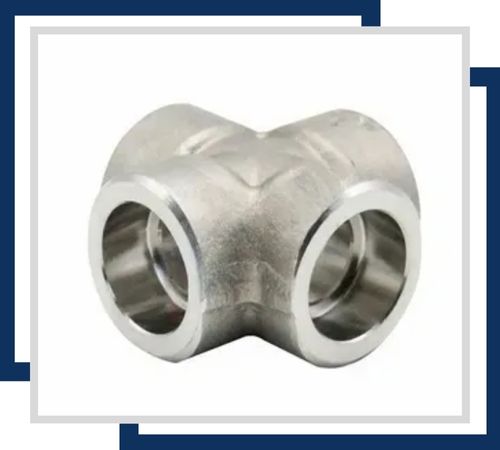

This cross-fitting offers exceptional corrosion resistance, enabling the intersection of four pipes. Sizes typically range from 1/2″ to 4″, adhering to ASTM standards for robustness and reliability in high-pressure applications.
SS 317/317L Forged Fittings are commonly utilized in environments that demand high corrosion resistance, such as chemical and petrochemical plants, pulp and paper facilities, food processing units, and marine equipment. In Canberra’s industrial landscape, Adam Stainless provides these fittings for applications involving aggressive media, high temperatures, and systems that require leak-proof, pressure-resistant connections. Their outstanding mechanical and corrosion-resistant properties make them a reliable choice for any demanding application.
