Adam Stainless, located in Canberra, Australia, stands out as a top manufacturer and supplier of Stainless Steel 310H Forged Fittings in Dubai, UAE. Renowned for their precision engineering and outstanding quality, Adam Stainless delivers fittings that adhere to global standards for strength, durability, and resistance to corrosion. These forged fittings are crafted to excel in extreme temperatures and tough environments, making them perfect for critical industrial applications. With a strong focus on innovation, quality assurance, and customer satisfaction, Adam Stainless has earned its reputation as a reliable name in the stainless steel manufacturing sector across international markets.
Stainless Steel 310H Forged Fittings are made with a high content of chromium and nickel, which gives them excellent oxidation and corrosion resistance, even in high-temperature settings. This alloy boasts impressive mechanical properties, featuring a tensile strength of about 515 MPa and a yield strength of 205 MPa. It also retains good ductility and toughness, even when exposed to elevated temperatures. The increased carbon content in 310H enhances its creep resistance and strength, making it ideal for applications that demand consistent high-temperature performance and structural stability.
| Standard | ASTM A182 / ASME SA182 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 310H | 0.04 – 0.10 | 2.0 max | 1.00 max | 0.045 max | 0.030 max | 24.00 – 26.00 | – | 19.00 – 21.00 | 53.885 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1402 °C (2555 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
Contact us to get a quick quote for your requirement.
We ensures the highest standards for its stainless steel 310H lattice fittings through stringent testing and certification programs. Extensive testing of each component is carried out, including dimensional testing, mechanical testing and corrosion resistance evaluation. Certifications such as Mill Test Reports (MTR) and ISO compliance ensure the reliability and performance of each fitting.

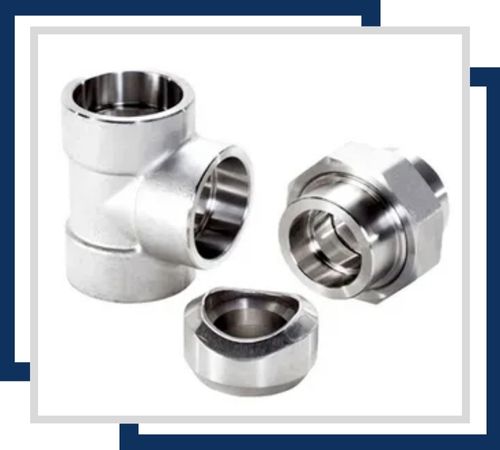

Corrosion-resistant and designed for high-temperature applications, these fittings are ideal for joining pipes. Sizes typically range from 1/4 inch to 4 inches. Dimensions vary based on pipe size, with standard schedules available.

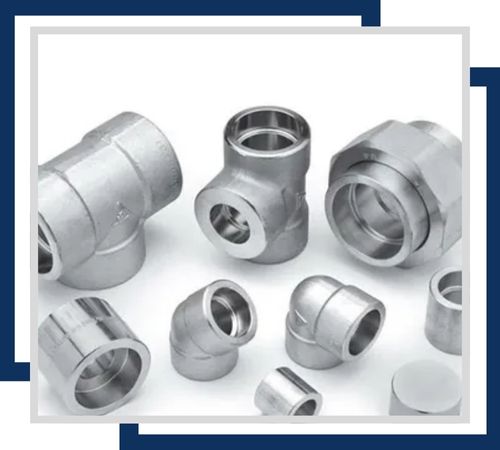

Offering excellent corrosion resistance, these fittings are used where welding is impractical. Common sizes range from 1/8 inch to 2 inches. They are available in various threads per inch, adhering to ANSI standards.

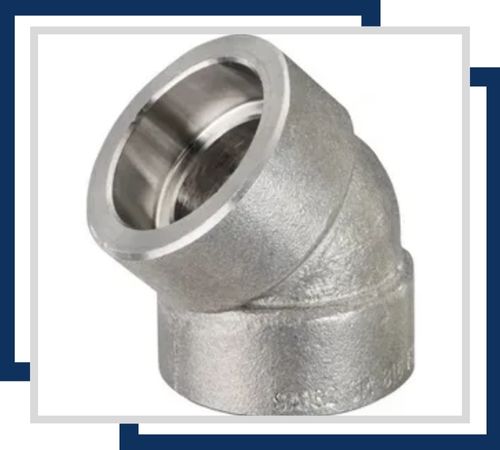

This elbow provides high resistance to oxidation and corrosion at elevated temperatures. Available in sizes from 1/2 inch to 4 inches, it helps in redirecting flow at a 45-degree angle. Dimensions conform to ANSI/ASME standards.

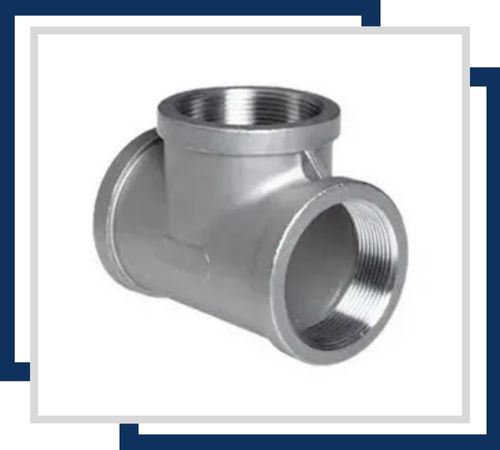

Corrosion-resistant and durable, the threaded tee connects three pipes. Sizes generally range from 1/4 inch to 4 inches, with dimensions following standard pipe thread specifications for ease of connection.

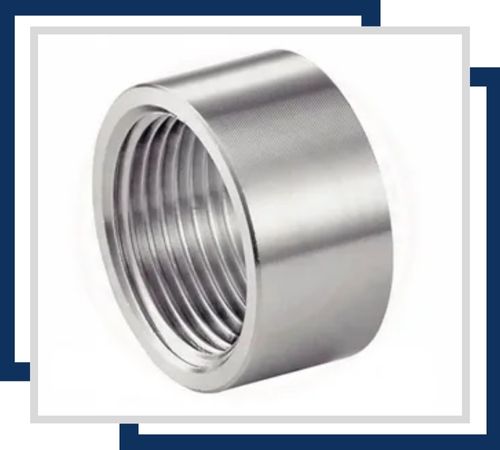

Offering superior resistance to high temperatures and corrosion, this coupling is used for pipe connections. Sizes typically range from 1/4 inch to 2 inches. It features internal threads that match standard pipe sizes.

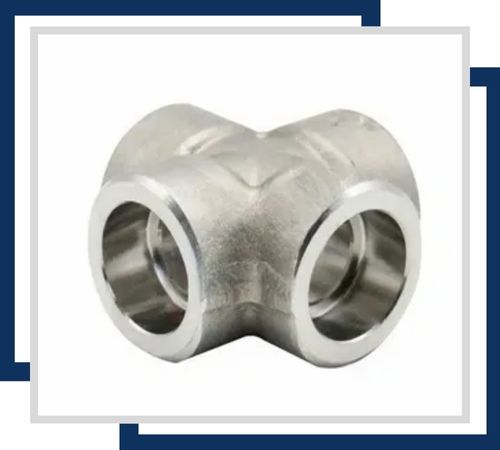

With excellent corrosion resistance, the socket weld cross allows for the connection of four pipes at a single junction. Common sizes range from 1/2 inch to 2 inches, with dimensions based on standard pipe specifications.
These fittings are widely utilized in industries that require heat and corrosion resistance. They are particularly suited for chemical processing, heat treatment equipment, power generation, and furnace components. These fittings operate efficiently in environments with high-temperature gases, steam, and corrosive chemicals. Moreover, they find applications in oil and gas refineries, petrochemical plants, and marine settings due to their durability and reliability. Their ability to maintain strength and integrity under extreme thermal and mechanical stress makes them crucial for demanding industrial operations.
