Adam Stainless, a reputable manufacturer and supplier located in Canberra, Australia, is all about providing top-notch Stainless Steel 410S Sheets and Plates. These products are crafted to deliver outstanding corrosion resistance, excellent oxidation resistance, and good formability, making them perfect for a wide range of industrial and structural uses. Adam Stainless takes pride in ensuring that every sheet and plate meets rigorous quality standards, guaranteeing reliable performance even in high-temperature situations. With a strong focus on innovation, durability, and customer satisfaction, the company supplies Stainless Steel 410S Sheets and Plates to various industries throughout Australia and beyond.
Stainless Steel 410S Sheets and Plates are ferritic stainless steels that contain 11.5–13.5% chromium, along with low carbon content and trace elements like manganese, silicon, and nickel. This specific chemical composition boosts their corrosion and oxidation resistance while keeping hardenability to a minimum. On the mechanical side, these sheets and plates showcase moderate tensile strength, good ductility, and excellent weldability. The lower carbon content helps prevent hardening during welding, which maintains structural integrity and thermal stability. This blend of mechanical and chemical properties makes them ideal for environments that are heat-resistant and mildly corrosive.
Standard : ASTM / ASME A240 / SA240
Size : 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm
Thickness : 0.1mm to 12 mm Thk
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
| Element | SS 410S |
| C | 0.08 max |
| Mn | 1 max |
| Si | 1 max |
| P | 0.040 max |
| S | 0.030 max |
| Cr | 11.5 – 13.5 |
| Fe | 85 |
| Element | SS 410S |
| Density | 7.8 g/cm3 |
| Tensile Strength | psi – 64,400, MPa – 444 |
| Yield Strength (0.2%Offset) | psi – 42,000, MPa – 290 |
| Elongation | 33 % |
| Hardness | Rockwell B (HR B)- 75 / Brinell (HB)- 65 |
Contact us to get a quick quote for your requirement.

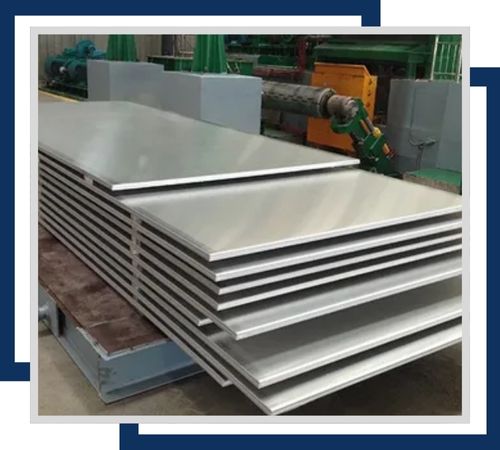

Stainless Steel 410S hot rolled sheets possess excellent corrosion resistance with high strength and toughness. The sheets come in a wide range of thicknesses, starting from 1.5 mm up to 20 mm with widths up to 2000 mm. These are suitable for high-impact resistant applications.

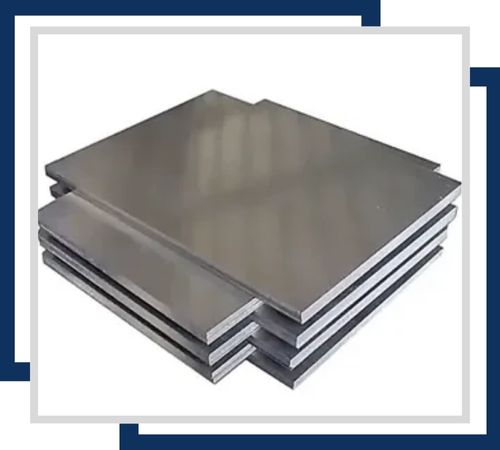

Stainless Steel 410S Cold Rolled Plates have corrosion resistance along with a smooth, bright surface finish. Usually made available in width up to 1500mm and in different thickness ranges such as 0.5-6 mm these plates are specially suited for use in precision engineering and for critical applications where closer tolerances apply.

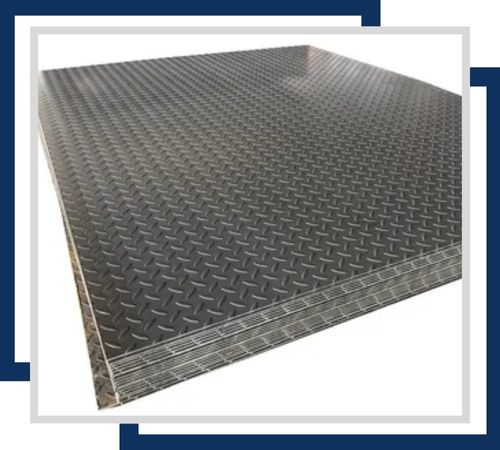

Stainless Steel 410S Chequered Sheets have a raised pattern, which gives excellent corrosion and slip resistance. These sheets are available in various thicknesses from 1.2 mm to 6 mm and up to 2000 mm x 1000 mm dimensions, which make them suitable for flooring and decorative applications.

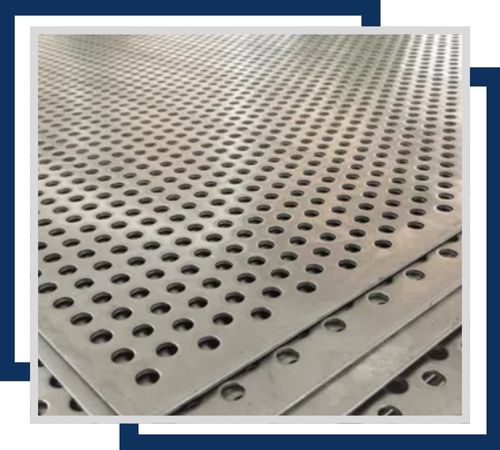

Stainless Steel 410S Perforated Plates combine protection against corrosion with increased ventilation and aesthetics. The perforated plates are available in a number of hole sizes and patterns, available in thicknesses ranging from 1 mm up to 4 mm and available in dimensions up to 2500 mm × 1200 mm for filters and screens.

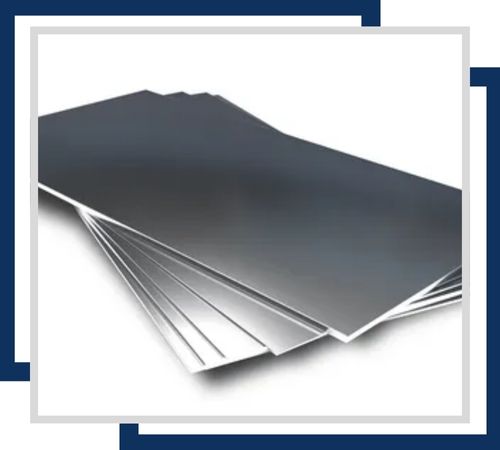

The Shim Sheets of Stainless Steel 410S are available with corrosion resistance and precise control over thickness. These sheets are available in 0.1 mm thickness up to 1000 mm x 1000 mm, cut to size for fine-tuning mechanical fits.

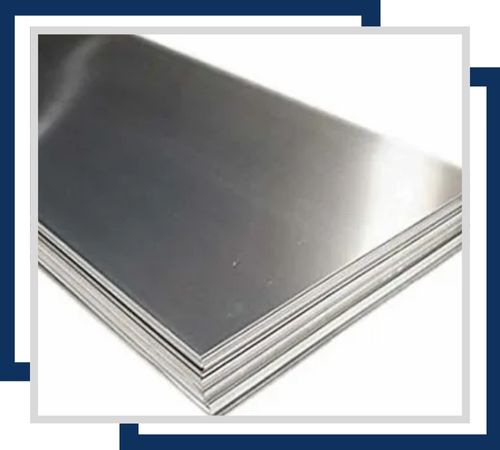

Stainless Steel 410S polished plates offer outstanding corrosion resistance and have a highly reflective finish. The plates are usually available in sizes up to 2000 mm x 1000 mm with thickness between 1mm and 6mm. Stainless Steel 410S Polished Plates are used in aesthetic applications as well as in decorative purposes.
Adam Stainless guarantees a high customer experience by completing all the necessary documentation of high-quality Stainless Steel 410S Sheets and Plates. We will provide our customer with commercial invoices, packing list, fumigation certificate, heat treatment chart, quality assurance plan, and lab test reports certified by NABL-approved labs to prove authenticity and superior quality in our products that can give complete trust and satisfaction to our respected customers. Additionally, our Stainless Steel 410S Sheets and Plates are supplied with test certificates such as MTC as per EN 10204/3.1b, PMI Test Certificate, a 100% radiography test report, and Third Party Inspection Certificate. These certificates reflect our customer-focused approach and our very strong commitment to product excellence.
You’ll find Stainless Steel 410S Sheets and Plates being used in automotive exhaust systems, thermal exchangers, furnace components, and petrochemical processing equipment, all thanks to their impressive heat and oxidation resistance. They’re also great for applications like ducting, refinery parts, and combustion chambers where thermal fatigue resistance is a must. Plus, these sheets and plates are perfect for architectural structures and industrial fabrication projects that require durability, easy maintenance, and corrosion protection. Their cost-effectiveness and mechanical strength make them a go-to choice across various industrial sectors.
