Looking for top-notch **Stainless Steel 347H flanges**? Adam Stainless has you covered! Based in Canberra, Australia, we specialize in high-quality flanges designed to deliver exceptional strength, corrosion resistance, and outstanding performance even in high-temperature settings. Our flanges are crafted to meet international standards, ensuring precise dimensions, smooth finishes, and dependable sealing capabilities. Whether you’re dealing with critical piping or pressure vessel applications, our Stainless Steel 347H flanges are perfect for situations where thermal stability and resistance to intergranular corrosion are a must.
So, what makes Stainless Steel 347H special? This austenitic stainless steel alloy boasts around 17–19% chromium, 9–13% nickel, and is stabilized with niobium (columbium) to prevent carbide precipitation. The higher carbon content enhances creep strength and mechanical stability, allowing it to withstand temperatures up to 925°C, while niobium boosts resistance to intergranular corrosion. On the mechanical side, these flanges provide a tensile strength ranging from 515 to 620 MPa and a yield strength of about 205 MPa, along with excellent oxidation resistance.
| Standard | ASTM A182 / ASME SA182 |
| Dimensions | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges |
| Size | 1/2″ (15 NB) to 48″ (1200NB) |
| Class/Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Grade | C | Mn | Si | P | S | Cr | Cb | Ni | Fe |
| 347H | 0.08 | 2.0 | 1.0 | 0.045 | 0.030 | 17.00 – 20.00 | 10xC – 1.10 | 9.00 – 13.00 | 62.74 min |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 347H | 515 | 205 | 35 | 92 | 201 |
Contact us to get a quick quote for your requirement.

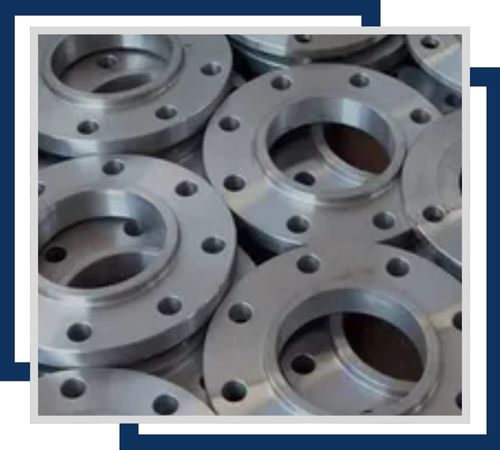

SS 347Hsocket weld flanges, manufactured from stainless steel alloy 347H, ensure secure pipe connections with enhanced corrosion resistance and high-temperature strength, suitable for high-pressure systems in various industries.

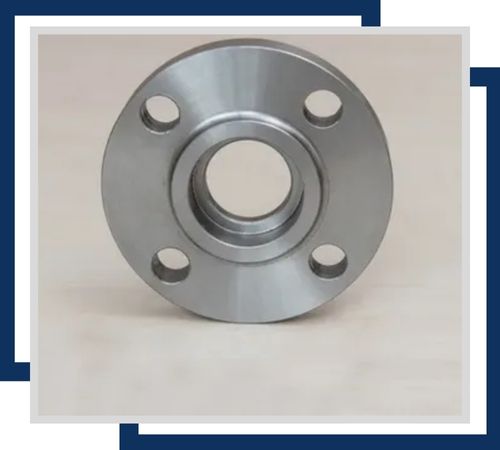

SS 347H ring type joint flanges, constructed from stainless steel alloy 347H, provide leak-proof connections with excellent corrosion resistance and high-temperature performance, ideal for high-pressure and critical service applications.

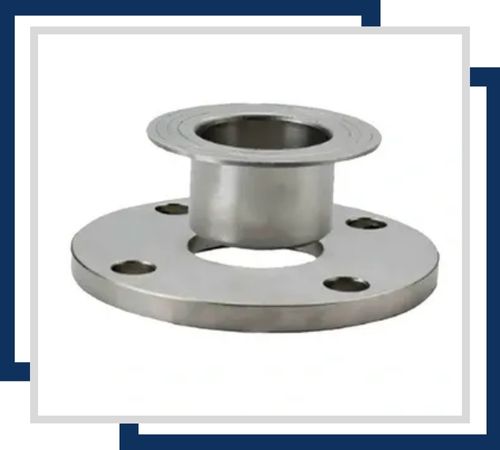

SS 347H forged flanges, made from stainless steel alloy 347H, offer superior strength, excellent corrosion resistance, and high-temperature endurance, making them ideal for demanding industrial applications and high-pressure environments.
These flanges find their place in various industries, including **power generation, petrochemical, chemical processing, aerospace, and heat treatment**. They’re perfect for **boilers, heat exchangers, pressure vessels, and high-temperature piping systems**, where secure and corrosion-resistant connections are crucial. With Adam Stainless’s Stainless Steel 347H flanges, you can count on durable, leak-proof joints that maintain their integrity and performance even under extreme thermal and mechanical stresses, making them a reliable choice for demanding industrial applications.
Stainless Steel 347H Flanges are used in very high stress and also under high-temperature conditions. It is highly resistant to corrosion and oxidation. It is used in chemical processing, refineries, and power plants where temperatures are at high levels with extra harsh condition. The added columbium and tantalum increase stability and sensitize to resistance so that there will be no intergranular corrosion. In other industries, the 347H flanges are used in the equipment, like boilers, heat exchangers, and reactors in petrochemical, pharmaceutical, and food processing industries. This makes them the choice for extreme application in critical use in several fields.
