Adam Stainless is your go-to manufacturer and supplier of Stainless Steel 316Ti Flanges right here in Canberra, Australia. We pride ourselves on delivering top-notch flanges that are built to withstand high temperatures and corrosive environments. With a strong commitment to precision, quality assurance, and adhering to industry standards, our SS 316Ti flanges meet international benchmarks like ASTM A182. These flanges find their place in various sectors, including chemical processing, oil and gas, marine applications, and heat exchangers. Thanks to our focus on timely delivery and dedicated technical support, Adam Stainless has earned a reputation as a trusted supplier of stainless steel flanges across Australia’s industrial landscape.
Our Stainless Steel 316Ti Flanges are crafted from a titanium-stabilized austenitic stainless steel alloy, which includes 16–18% chromium, 10–14% nickel, 2–3% molybdenum, and a touch of titanium. This titanium addition boosts resistance to intergranular corrosion, particularly after welding, making these flanges perfect for continuous use in high-temperature settings. They excel in resisting pitting, crevice corrosion, and general chemical attacks. With a tensile strength of about 515 MPa and a yield strength of around 205 MPa, our SS 316Ti flanges come in various types, including slip-on, weld neck, socket weld, blind, and threaded.
| Specifications | ASTM A182 / ASME SA182 |
| Size | 1/8″ NB TO 48″ NB |
| Standards | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Grades | S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 |
| ELEMENT | MIN | MAX |
|---|---|---|
| C | – | 0.08 |
| Si | – | 0.75 |
| Mn | – | 2 |
| P | – | 0.45 |
| S | – | 0.03 |
| Cr | 16 | 18 |
| Mo | 2 | 3 |
| N | – | 0.1 |
| Fe | Balance | |
| Ni | 10 | 14 |
| Ti | 5x%(C+N) | |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1457 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
We offers the best quality Stainless Steel 30TI flanges of superior quality test for best products and performance at an international standards level with due testing and full specification. Being a certified supplier, we certify every batch based on traceable documents. To make the modern products with no corrosion, robust, and quality mechanical properties to give you extra value, we used the modern world’s technology at a stringent and tight quality-control measure. Adam Stainless commits to deliver the highest level of flanges that could ensure functionality and safety.

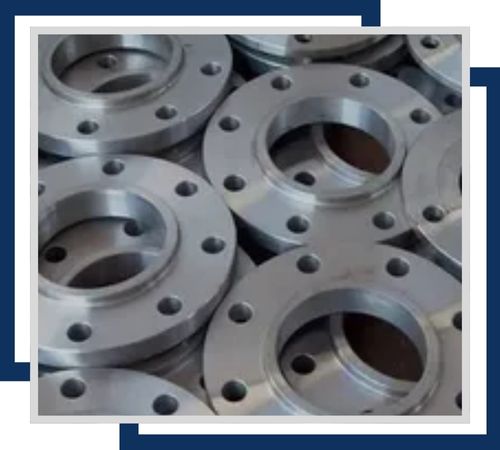

Featuring internal threads for easy attachment to pipes with matching threads, these flanges are typically available from 1/2″ to 6″. Their titanium content enhances corrosion resistance, particularly in aggressive chemical environments

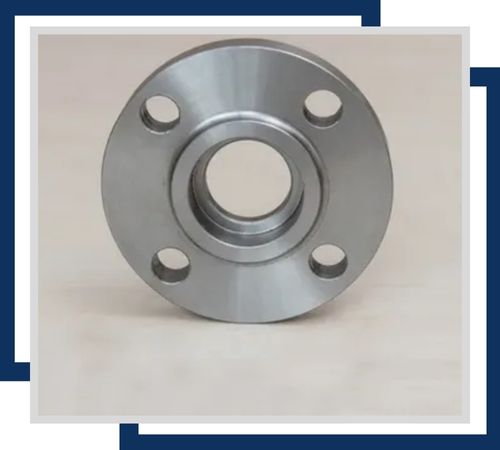

Designed for high-pressure systems, these flanges are inserted into a socket and welded in place. They come in sizes from 1″ to 24″ and offer robust corrosion resistance due to the 316Ti alloy’s resistance to oxidation and chloride stress.

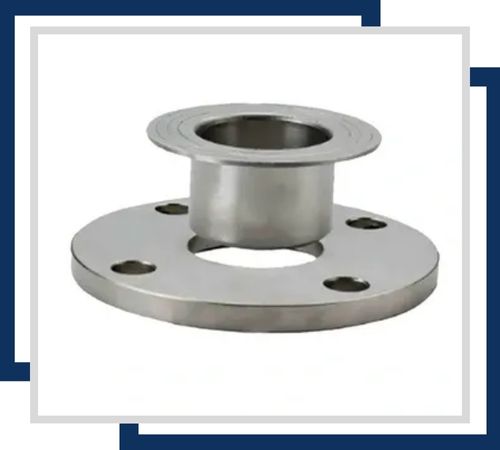

These flanges are used with a loose backing flange and provide a smooth, corrosion-resistant surface for easy alignment and maintenance. They are available in sizes from 1″ to 24″ and are highly resistant to rust and corrosion, suitable for various industries.
SS 316Ti Flanges are perfect for connecting pipes, valves, pumps, and other equipment in corrosive or high-temperature systems. In Canberra’s industrial scene, Adam Stainless supplies these flanges for applications in refineries, pressure vessels, water treatment plants, marine equipment, and thermal processing facilities. Their outstanding durability, high-temperature strength, and excellent corrosion resistance make them ideal for both new installations and replacement projects. We offer a wide range of options to meet your specific needs.
