Adam Stainless, located in Canberra, Australia, stands out as a top-notch manufacturer and supplier of premium stainless steel products, including their renowned Stainless Steel 314 Bars. Known for their precision engineering and unwavering reliability, Adam Stainless provides bars that adhere to international standards for durability and performance. These Stainless Steel 314 Bars are specifically crafted to endure high-temperature environments, making them perfect for industrial applications that demand both heat and corrosion resistance. With a strong commitment to excellence, Adam Stainless ensures that each bar goes through thorough quality control processes, delivering materials that boast strength, longevity, and exceptional resistance to oxidation and scaling, even in extreme conditions.
The composition of Stainless Steel 314 Bars primarily includes iron, along with about 24–26% chromium and 19–22% nickel, which significantly boosts their high-temperature resistance. Small amounts of carbon, manganese, and silicon are added to enhance mechanical strength and hardness. These bars showcase impressive tensile strength, typically falling between 580–750 MPa, and a yield strength of 220–400 MPa, with an elongation rate of around 30%. Their remarkable creep and oxidation resistance at temperatures reaching up to 1100°C make them ideal for furnace and heat-treating applications. The alloy’s hardness, toughness, and thermal stability guarantee optimal performance in extreme operating conditions without sacrificing structural integrity.
Specification : ASTM A276, A479 / ASME SA276, SA479
Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI
Round Bars : Outside Diameter in the range of 4mm to 500mm
Bright Bars : Outside Diameter in the range of 4mm to 100mm
Hex Bars : 18mm – 57mm (11/16″ to 2-3/4″)
Square Bars : 18mm – 47mm (11/16″ to 1-3/4″)
Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Length : 1 to 6 Meters, Custom Cut Lengths
Form : Round, Square, Hex (A/F), Rectangle Etc.
| Element | Content (%) |
|---|---|
| Iron, fe | Balance |
| Chromium, Cr | 19-26 |
| Nickel, Ni | 19-22 |
| Manganese, Mn | 2 |
| Silicon, Si | 1.5-3 |
| Carbon, C | 0.25 |
| Sulfur, S | 0.03 |
| Phosphorous, P | 0.045 |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 689 MPa | 99900 psi |
| Yield strength | 345 MPa | 50000 psi |
| Modulus of elasticity | 200 GPa | 29000 ksi |
| Elongation at break (in 50 mm) | 40% | 40% |
| Hardness, Rockwell B | 85 | 85 |
Contact us to get a quick quote for your requirement.
We ensures that it provides the most excellent quality on Stainless Steel 314 Bars in terms of being tested and certification. Each and every bar passed through the high-quality mechanical, chemical analysis; tensile strength, hardness strength, corrosion testing, and with reports like a Mill Test Certificate, which verifies the industry specification and customer satisfaction.

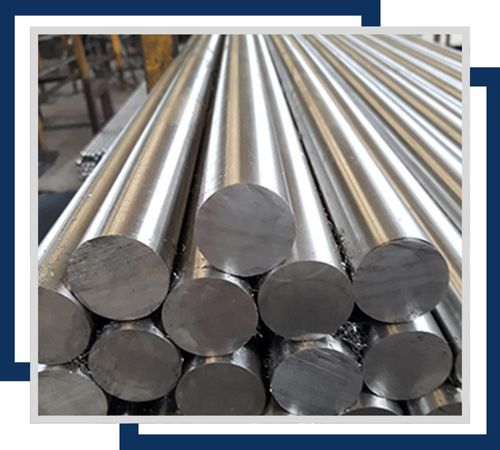

Corrosion-resistant and designed for high-temperature applications, Stainless Steel 314 Round Bars are available in diameters from 0.5″ to 12″. Ideal for use in industrial equipment and heat exchangers.

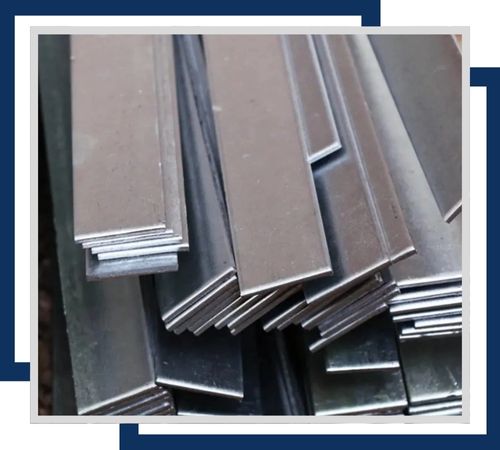

Stainless Steel 314 Flat Bars offer excellent resistance to high temperatures, available in thicknesses from 0.25″ to 6″ and widths up to 12″. Perfect for structural components and industrial uses.

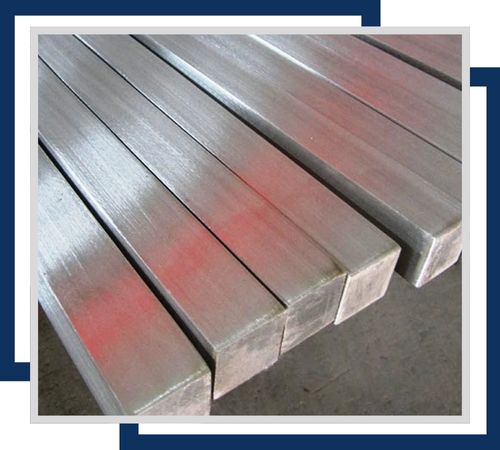

Featuring superior heat resistance, Stainless Steel 314 Square Bars come in sizes from 0.5″ to 6″ on each side. They are suitable for applications requiring high strength and thermal stability.

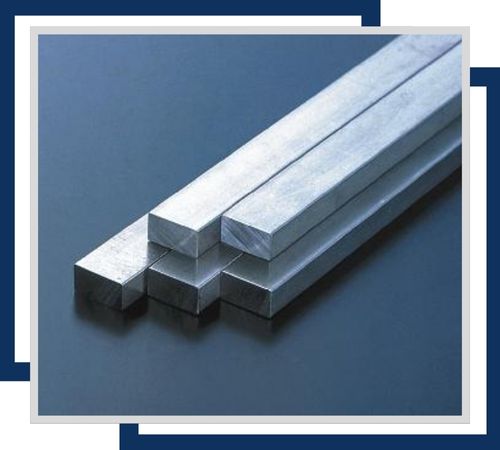

Stainless Steel 314 Rectangular Bars provide excellent high-temperature resistance, available in sizes from 0.5″ x 1″ to 6″ x 12″. Ideal for heavy-duty applications and components exposed to extreme conditions.

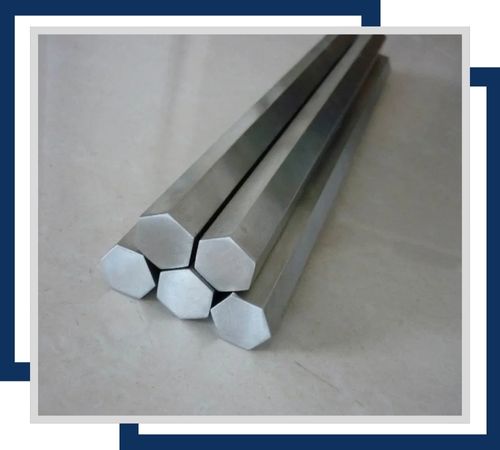

Offering exceptional heat resistance, Stainless Steel 314 Hexagonal Bars are available in sizes from 0.5″ to 4″ across flats. Suitable for aerospace and chemical processing applications requiring durable performance.

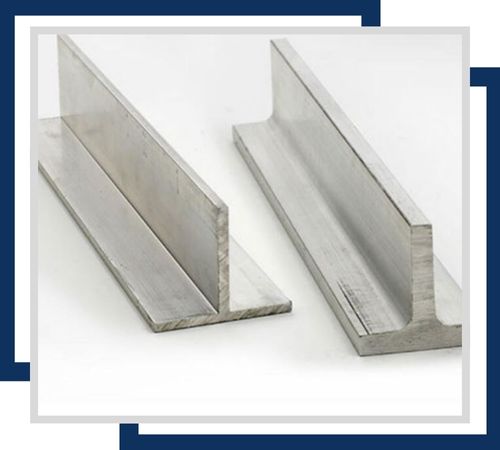

Corrosion-resistant Stainless Steel 314 T-Bars come in dimensions from 0.5″ x 0.5″ to 6″ x 6″. They are ideal for structural applications and machinery needing high-temperature strength and durability.
Stainless Steel 314 Bars find extensive use in industries that require outstanding heat and corrosion resistance. They are commonly utilized in furnace components, heat exchangers, kiln linings, and industrial burners. Their ability to retain mechanical strength at elevated temperatures makes them a go-to choice for aerospace, chemical processing, and power generation equipment. Additionally, they are essential in the production of high-temperature fasteners, valves, and pressure vessels. Adam Stainless provides these bars to clients in need of dependable materials for critical high-temperature environments, ensuring safety and reliability.
