Home > Electrodes > AWS Class ER385 Mig & Tig Filler Welding Wire & Rod
Adam Stainless, located in Canberra, Australia, is a well-respected manufacturer and supplier of top-notch welding consumables, including the AWS Class ER385 MIG and TIG Filler Welding Wire and Rod. Known for their precision engineering and commitment to international standards, Adam Stainless delivers exceptional welding products that are built to resist corrosion and stand the test of time. The ER385 filler wires and rods are perfect for applications that demand resilience in tough environments, ensuring strong and clean welds every time. With a strong emphasis on quality assurance and performance, Adam Stainless serves various industries across Australia, providing dependable welding solutions for critical fabrication projects.
The AWS Class ER385 MIG and TIG Filler Welding Wire and Rod feature a composition of about 20–22% chromium, 24–26% nickel, 2.5–4.5% molybdenum, and low carbon content to prevent carbide precipitation. This unique blend offers remarkable corrosion resistance, particularly in harsh chemical settings. The weld deposit boasts a tensile strength of around 550 MPa, yield strength of 350 MPa, and an elongation of 30%, ensuring both toughness and ductility. These mechanical properties make ER385 an excellent choice for welding high-alloy steels and materials that face aggressive conditions.
| Classification | AWS A5.9, ER385 |
| Form | MIG spools, TIG cut lengths, Reels and Coils |
| Type Of Welding | Inert Gas Welding |
| Current | MIG-DCEP / TIG-DCEN |
| Diameters | .023”, .030”, .035”, .045”, 1/16”, 3/32”, 1/8” |
| Standard TIG straight lengths are available | 36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request. |
| AWS ER385 MIG & TIG Filler Metal Application & uses |
|
C | Mn | Si | Cr | Ni | Mo | S | P | Cu | |
Standard | ≤0.025 | 1.00-2.50 | ≤0.50 | 19.5-21.5 | 24.0-26.0 | 4.20-5.20 | ≤0.030 | ≤0.020 | 1.20-2.00 |
Test | 0.013 | 1.93 | 0.21 | 20.5 | 25.10 | 4.67 | 0.003 | 0.012 | 1.69 |
| Tensile Strength (psi) | 86,000 psi (593 MPa) |
|---|---|
| Yield Strength (psi) | 57,000 psi (393 MPa) |
| Elongation (%) | 42% |
Contact us to get a quick quote for your requirement.

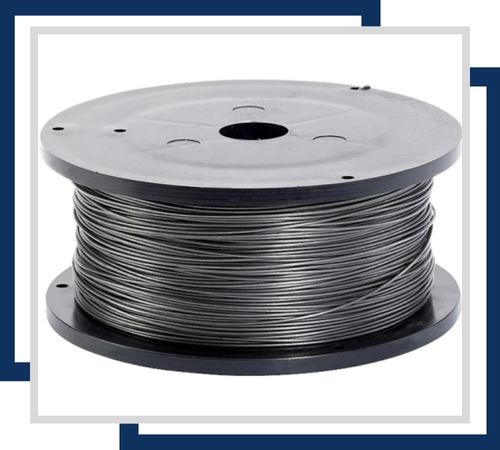

Stainless Steel ER385 MIG filler wire, available in sizes from 0.8mm to 1.6mm, offers excellent corrosion resistance for welding high-alloy stainless steels. Ideal for critical industrial applications.

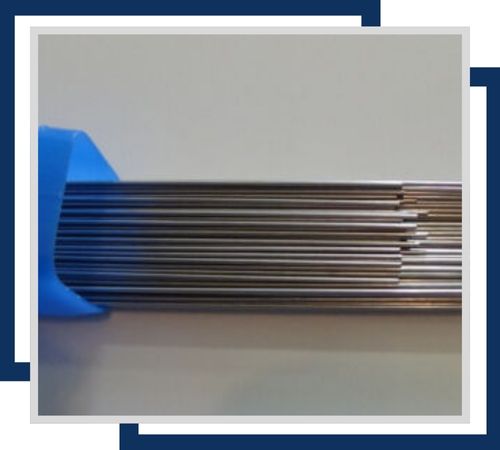

Stainless Steel ER385 TIG filler wire, ranging from 1.0mm to 3.2mm, provides superior corrosion resistance. Perfect for precision welding of high-alloy stainless steels in demanding environments.

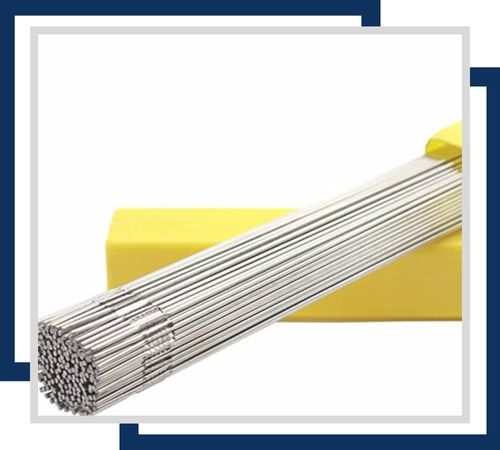

Stainless Steel ER385 TIG filler rod, available in sizes from 1.0mm to 3.2mm, ensures excellent corrosion resistance. Suitable for welding high-alloy stainless steels in various industrial applications.
We assure the highest quality for our AWS Class ER385 MIG and TIG Filler Welding Wire and Rod through comprehensive in-house testing and inspections. These products are engineered to provide excellent welding performance with enhanced resistance to corrosion and oxidation at high temperatures. We prioritize timely deliveries, ensuring that our clients receive their orders without delay, maintaining efficiency and reliability in every project.
Primarily, the AWS Class ER385 MIG and TIG Filler Welding Wire and Rod are used for welding alloys with similar compositions, such as ASTM CF-20, Alloy 904L, and other high-alloy austenitic stainless steels. They find extensive application in industries that require exceptional corrosion and pitting resistance, including chemical processing, pulp and paper, marine, and pollution control equipment manufacturing. Additionally, this filler material is well-suited for joining dissimilar metals where strength and resistance to chemical attack are crucial, ensuring durable and reliable welds even in challenging service environments.
